A General Description of Motor Yacht ASEAN LADY

This motor yacht ASEAN LADY is a 88 m 289 (foot) important steel luxury yacht which was crafted by Raffles Yachts and her design is by Ian Mitchell. Sleeping 22 guests and 18 crew members, motor yacht ASEAN LADY was formerly named (Proa 2000). This gracious motor yacht has been created by a naval architect called Ian Mitchell. Annie Chang was successful with the designing of the interior.

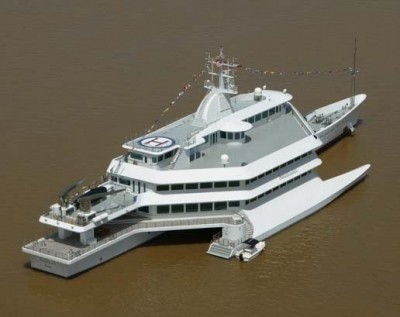

Apart from her size, ASEAN LADY is also unique for her shape with a design based on a Proa, - a bamboo outrigger canoe known for their stability and long range used for centuries in the South Pacific. The design solved many problems for luxury yacht such as space, noise, stability at anchor, stability while cruising and large windows. ASEAN LADY was originally called the Proa 2000 and is powered by a single 2000hp engine with a Counter Rotating Propeller (CRP) Azimuth Drive. She has a speed of 15 knots and the yacht is also equipped with a 600hp Retractable Thruster that is also capable of propelling at a speed of 7 knots. The Proa 2000 could literally walk sideways with both the forward and aft drives making berthing a breeze. Her stability was put to the test in December 2004 when she survived the Tsunami while anchored off Phuket. ASEAN LADY was named the most innovative motor yacht by Showboats International in 2005.

The Construction & Design with respect to Luxury Yacht ASEAN LADY

Ian Mitchell was the naval architecture company involved in the technical nautical design work for ASEAN LADY. Her interior design was conceived by Annie Chang. Ian Mitchell is also associated with the yacht wider design collaboration for this boat. China is the country that Raffles Yachts completed their new build motor yacht in. After official launch in 2004 in Yantai she was delivered on to the proud new owner having completed sea trials and testing. The hull was built out of steel. The motor yacht superstructure component is fabricated predominantly using steel. With a beam of 21.2 metres or 69.55 ft ASEAN LADY has very beamy internal space. A fairly deep draught of 3.5m (11.48ft) affects the amount of certain harbours she can enter into, depending on their specific depth at low tide.

M/Y ASEAN LADY Engineering Figures & Propulsion:

Her propulsion units are twin screw propellers. She also has an economical range of 10000 miles when underway at her cruising speed of 12 knots. Her total HP is 2000 HP and her total Kilowatts are 1492.

Accommodation Offered On Superyacht ASEAN LADY:

The huge luxury yacht motor yacht ASEAN LADY can sleep as many as 22 passengers and 18 crew.

A List of the Specifications of the ASEAN LADY:

Superyacht Name:	Motor Yacht ASEAN LADY
Ex:	(Proa 2000)
Built By:	Raffles Yachts Ltd
Built in:	Yantai, China
Launched in:	2004
Length Overall:	88.15 metres / 289.21 feet.
Naval Architecture:	Ian Mitchell, Ian Mitchell
Interior Designers:	Annie Chang
Gross Tonnes:	2385
Displacement:	1719
Hull / Superstructure Construction Material:	steel / steel
Owner of ASEAN LADY:	Unknown
ASEAN LADY available for luxury yacht charters:	-
Is the yacht for sale:	-
Helicopter Landing Pad:	No
The Country the Yacht is Flagged in:	Panama
Official registry port is:	Panama
Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code:	No
Max yacht charter guests:	22
Number of Crew Members:	18
- Giving the combined power of 2000 HP /1492 KW.
Approximate Cruise Speed is 12 nautical miles per hour.
Her top Speed is around 15 knots.
Range:	10000 at a speed of 12 knots.
Fuel tanks:	256700L.
Water:	99600.00.
Yacht Beam:	21.2m/69.55ft.
Draught Maximum:	3.5m/11.48ft.
