Superyacht Project Monarch Renderings

June 23, 2010

Written by Chelsea Smith

On the 18th of June, CharterWorld brought you news regarding Project Monarch Yacht that is to be completed by Delta Marine and Caterpillar Financial Services Corporation (Cat Financial). We have now received four renderings done by Jonathan Quinn Barnett of the exterior styling and interior design of Project Monarch which just arrived at Delta’s yard in Seattle for completion.

With exterior styling and interior design by Jonathan Quinn Barnett, the 151-foot semi displacement super yacht Monarch has an impressive 30’ 9” beam, and features a balance of elegance and strength, form and function, performance, range and comfort. Motor yacht Monarch has a flared hull design with a hard chine to deflect spray and a high sheer line that captures a full beam arrangement forward of amidships. Her bulbous bow increases efficiency. Powered by twin Cat 3512 B series engines, M/Y MONARCH can reach speeds of up to 21 knots, with a range of 3,000 nautical miles at 12 knots. The yacht is ABS and MCA certified, under 500 gross tons and wheelchair navigable, with extra wide doors, spacious walkways and a centrally located elevator providing convenient access to all four decks.

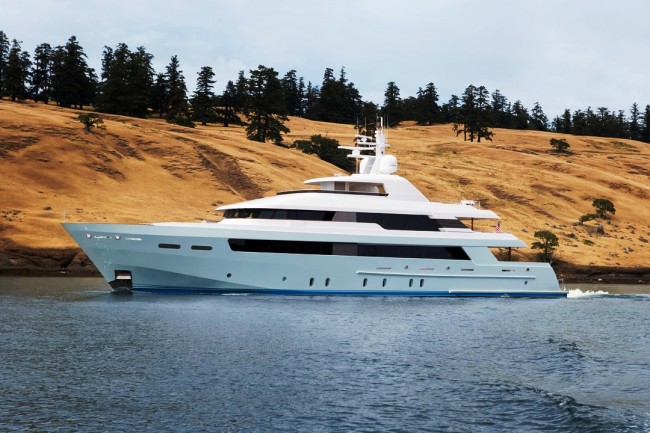

Superyacht MONARCH Exterior

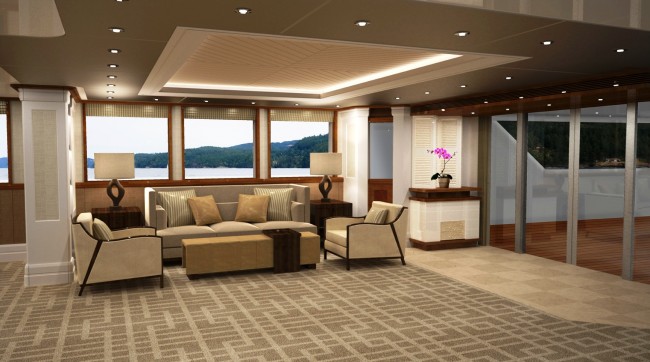

Project MONARCH Main salon

“The interior for this yacht will be a great departure from any of my previous work. We have developed a modern approach to the detailing using traditional satin paint finishes, almost with the appearance of being ‘hand brushed.’ Large windows allow natural light in and enhance the soft monochromatic coloring and textures,” says Barnett.

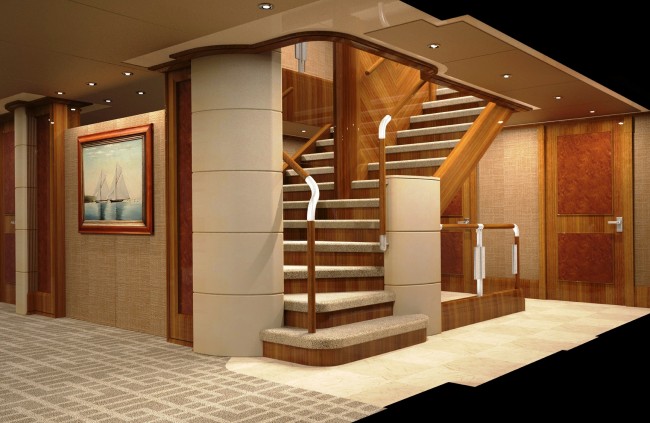

Motor yacht MONARCH Stairway

The mood changes as you enter the dining salon, where a soft, warm and intimate gathering space has been created. Finally, the design takes advantage again of reflective light with a gorgeous parchment paneled and mirrored stainless steel central staircase and elevator.

In the skylounge of the Motor Yacht MONARCH, the design is inspired by the great classic sailing and motor yachts from the turn of the century, with a modern spin. Elegant contemporary styling and soft worsted wool fabrics and leathers provide great comfort and warmth to compliment the generous use of wood solids and veneers. Marble accents play a key roll around the bar area with a decidedly “Gentlemen’s Club” feel. Sweeping views, large windows, a full bar and walk-in wine room makes this space perfect for cruising, entertaining or relaxing in the harbor. Just forward, the Portuguese bridge has wraparound glass panes with an expansive viewing range and a raised banquette that seats five – another great spot for admiring the passing scenery.

All can enjoy five-star comfort in the Monarch yacht’s well-appointed guest suites. Forward on the main deck, the full-beam master is fitted with office, vanity, cedar-lined walk-in wardrobes and a double bath with whirlpool tub. Two king-berths and one queen and one-twin berth staterooms surround a central lower-deck foyer embellished with rich paneling and a fine inlaid stone floor.

Deltas Project MONARCH Top deck

Delta Marine’s Project Monarch’s outdoor deck areas are a harmonious mix of sheltered and open venues, expansive settings and secluded corners, suitable for socializing of all kinds. Aft of the skylounge is a spacious area with seating for eight under the shade, complete with wet bar for cocktail parties under the stars.

Teak stairs lead to the sundeck with circular bar and an adjacent hot tub – a luxurious spot to take in the view. Guests can lie on the sun pads or sit on comfortable upholstered stools poolside and still look forward when underway.

Read more about motor yacht MONARCH here.

Below there is also a list of the Superyacht MONARCH’s specifications.

Motor yacht PROJECT MONARCH SPECIFICATIONS

LOA: 150’ 8” / 46.2 m
LWL: 135’ 2” / 41.1 m
Beam: 30’ 9” / 9.4 m (molded)
Draft: 7’ 0” / 2 m (half load)
Displacement: 320 long tons (half load
Gross Tonnage: Under 500 GT ITC
Engines: 2 x Cat 3512B 2,250 BHp @ 1,925 rpm
Speed: 21 knots
Cruise :18 knots
Fuel Capacity: 12,500 US gallons / 47,300 liters
Range: 2,500 nautical miles @ 12 knots
Generators: 2 x Northern Lights 99 kw, 1 x Northern Lights 65 kw
Stabilizers: 4-Fin System w/ Stabilization at Rest
Bow thrusters: Trac II Dual Prop 24” 100 hp
Fresh Water Capacity: 1,800 US gallons / 6,814 liters
Water-Makers :2 x FCI 1800 GPD
Air-Conditioners: Dometic
Entertainment Systems: Definitive Audio
Paint: Awlgrip
Material: Composite
Owner & Guests: 10
Crew: 12
Classification: ABS, MCA
Exterior Styling: Jonathan Quinn Barnett
Interior Space Planning: Jonathan Quinn Barnett
Interior Design: Jonathan Quinn Barnett
Builder/Year: Northern Marine, 2010
Tenders: 19’ Nautica, 15’ Nautica
Crane: Steelhead Marine CT4000

About Delta – Delta is a world leader in composite yacht construction, pioneering the use of composite superstructures on metal-hulled yachts. Their reputation for building seaworthy, quality vessels is built on years of experience and the drive to create innovative and beautiful yachts. Complete with a team of naval architects, marine engineers and skilled workers in specialized fields, Delta expertly combines traditional craftsmanship and the latest technology. We are located just five minutes from Boeing Field, a private jet center, and 10 minutes from Downtown Seattle.

About CAT Financial – Headquartered in Nashville, Tennessee, Caterpillar Financial Services Corporation is the financial arm of Caterpillar Inc., a Fortune 50 company, a technology leader and the world’s largest manufacturer of construction and mining equipment, natural gas and diesel engines, and industrial gas turbines. For more than 28 years, Cat Financial, a wholly-owned subsidiary of Caterpillar Inc., has been providing a wide range of financing alternatives for the complete line of Cat machinery and engines, Solar ® gas turbines, other related equipment and marine vessels. The company also extends loans to customers and dealers. Cat Financial has offices and subsidiaries located throughout the Americas, Asia, Australia, and Europe.

About JQB Ltd – Established in 1995, this Seattle-based design firm has provided award-winning design for an international client base. Jonathan Barnett’s design career began in 1987 working with the famously talented Jon Bannenberg, of London. After nearly seven years of world class design experience, Jonathan returned to the US to launch his own design studio. For fifteen years, the award-winning design studio has provided exterior and interior design services for new-build and refit yacht projects ranging in size from 50 feet to well over 400 feet in length.
