Tender Shipyard is currently working on the construction of the new TS80 Classic Limousine superyacht tender. Destined to be a tender to the Benetti motor yacht Formosa, the lovely TS 80 Classic Limousine boat features naval architecture by Philippe Cabon. It can comfortably host 10 to 12 passengers and a crew of 2.

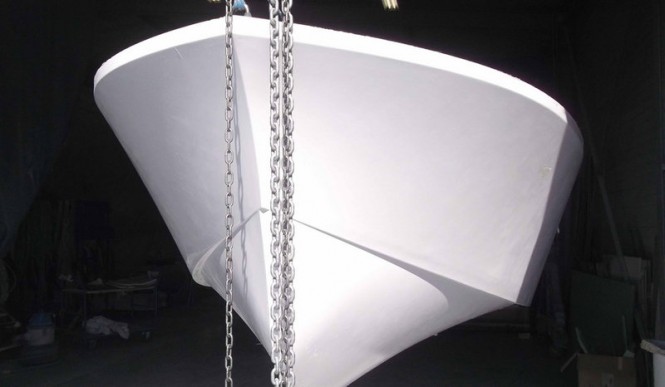

New Tender Shipyard TS80 Classic Limousine T/T Benetti motor yacht FORMOSA

Main Characteristics of TS80 Classic Limousine T/T Benetti superyacht Formosa:

Length overall 8.00 m / 26.3 ft

Maximum beam 2.58 m / 8.5 ft

Draft 0.55 m / 1.8 ft

Freeboard without engine for garage 1.3 m / 4.3 ft

Light Displacement with fuel and water 2 200 kg / 4856 lb

Loaded displacement 3 550 kg / 7836 lb

Standard engine Volvo D3-220 Duo Prop 220 Hp

Maximum engine power 260 Hp

Maximum speed with 260 Hp    35 kts

Fuel tank 240 litres / 63.4 US Gal

Water tank 40 litres / 10.6 US Gal

EC Design category C

Maximum number of passenger 10/12 people

Crew 2

Naval architect Philippe CABON

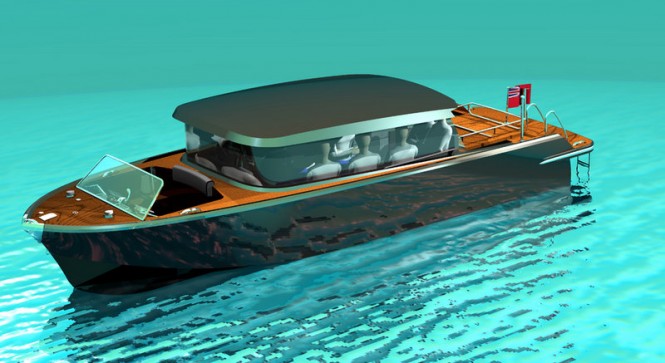

TS80 Classic Limousine T/T superyacht FORMOSA

Hull & deck structure

•             Hull, deck and roof: Vinylester resin vacuum process infusion,Glass fiber / PVC foam sandwich with local reinforcement. White gel coat.

•             Bulkheads and longitudinal girders PVC foam / glass fiber.

•             All bonding made with structural adhesives.

Engine and Propulsion

•             Engine Volvo D3-220, electronic injection with stern Drive Duo Prop.

•             Fuel filter and separator, remote shut off valve, 240 litres aluminum alloy fuel tank with 50 litres reserve, fuel gauges.

•             Engine control panel, fuel & water gauges, throttle on the steering console.

•             Carbon fiber steering wheel, cable transmission.

•             Ventilation with electric fans.

•             Engine compartment sound insulation in perforated Aluminium panels covering sound deadening foam sandwich.

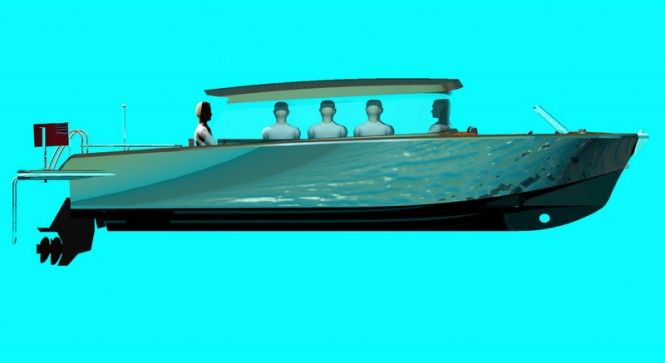

TS80 Classic Limousine T/T luxury yacht FORMOSA

Helm station

•             Carbon finishes on dashboard.

•             Carbon steering wheel, throttle and engine controls.

•             Electronic.

•             Compass with light.

•             Windlass control panel.

•             Retractable glass windscreen.

Metal work

All metal fittings in polished 316L stainless steel.

•             Hand rails, hinges, mounting plates, various fittings.

•             A4 Stainless steel screws, nuts & washers.

Electricity

•             2 x 12 V – 135 A AGM batteries.

•             10 functions watertight electric board on the steering console.

•             Circuit protection by thermal circuit breaker or fuses.

•             Battery charging via the engine alternator.

•             Anodes set.

•             All interior lights with leds.

•             Regular navigation lights (Led),

•             Light in engine room.

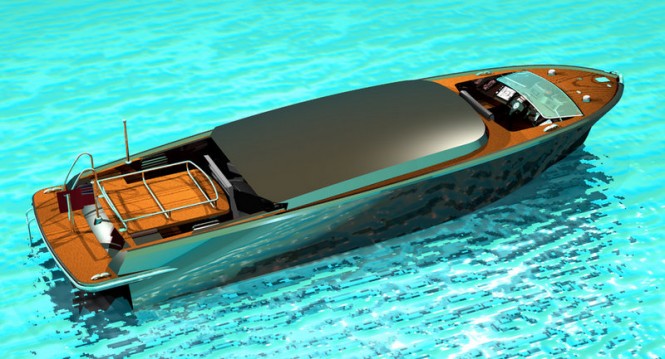

TS80 Classic Limousine T/T FORMOSA Yacht

Seat cushions

•             Complet set of Seats cushions in 80mm thickness closed cell (60 mm high and 20 mm low density) polyurethane foam covered with leather.

•             Cushions to be held in place by stainless steel fasteners.

•             Color to the client’s choice.

•             Storage for life jacket under each seat.

Teak deck

•             6mm thick, 56mm wide, natural teak from sustainable sources.

•             Black or white strips.

Paint

•             All the hull and deck paint with All Grip system, color on choise.

•             Hull under water line and transom in satin black.

•             Water line strip.

Plumbing system

•             2 automatic electric bilge pumps with buzzer alarm.

•             1 water tank with pump and shower at stern in a small box.

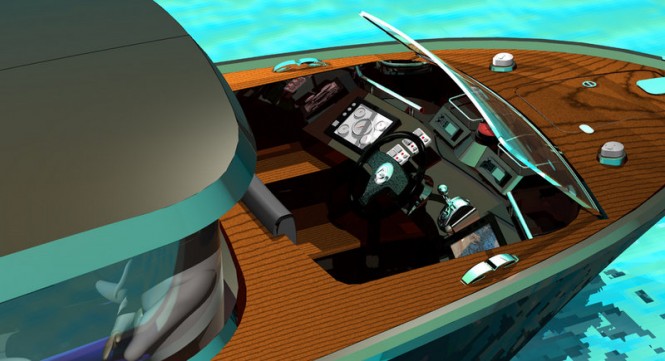

TS80 Classic Limousine T/T super yacht FORMOSA

Fire fighting

•             1 hand fire extinguisher in a locker at the steering console.

•             1 auto fire extinguisher in engine room.

•             Alarm

Electronics

•             1 VHF Icom IC-M411, 25 W recessed in the steering console, antenna.

•             1 radio CD,MP3 with antenna AM FM and 4 speakers 40 W.

•             GPS Ray marine package with antenna, Display 9’, 1 map on choice.

Anchoring equipment

•             Anchor locker at the bow with automatic removable anchor roller

•             5kg plate stainless steel anchor, 25 m chain, clench point.

•             Electric windlass and panel control at helm station.

Mooring equipment

•             4 foldable mooring cleats (2 fwd, 2 aft).

•             6 fenders and socks.

•             4 ropes 10 meters long.

Standard equipment

•             8 x blue long life LED cockpit lights (interior and exterior).

•             Towing chain plate.

•             Safety equipment for 10/12 people.

•             1 removable stainless steel Flag pole.

•             1 removable hand poles and plugs.

•             1 swim ladder.

•             2 boat hooks (Aluminium and telescopic).

•             1 first aid kit,

•             1 Tool kit.

•             Name.

•             Owner manual.

Lifting device

Tender lifting bridles for  1 point.

•             3 stainless steel padeyes fastened in the cockpit sole.

•             1 wire sling-bridle.

•             3 mooring eyes (1 transom and 2 forward).

Wood on hull (option)

•             Natural wood (wood species on choice) glued with epoxy under vacuum on hull part above water line.

•             Anti UV epoxy and fiber glass skin.

•             Polyurethane varnish finishes high gloss.
