Superyacht Kolaha, an ISA 630 and the flagship of the Ancona shipyard (ISA), stands out immediately for her extremely clean and streamlined presence, despite her healthy 63 metre length. (Article courtesy of ISA Yachts Italy, Images copyright ISA, translated from Italian).
The ISA 63 superyacht - exterior design by Andrea Vallicelli and ISA
The yacht build project involved the technical department at ISA, led by Anthony Lombards, and Marcello Maggi, who has collaborated the birth of the 630 yacht concept. The main objective was maximum efficiency of the hull without the need for complicated focusing on technology, but a great naval architecture.
The ISA 630 Motor Yacht Kolaha - The Foyer - Images By ISA
Andrea Vallicelli, renowned designer of sailboats (including Riviera), has spoken on the external lines working in close touch with the office of the shipyard. The sleek profile conceals a significant beam of 12 meters. The white superstructure merges with the hull colour “Moon stone” and the profile angle of the aft decks creates with ample space for outdoor living.
The ISA 630 yacht’s sun deck, which houses a swimming pool in a position which ensures maximum privacy for guests on board, and the lower deck, which is located at the stern, a platform folding that transforms the area into a beach club.

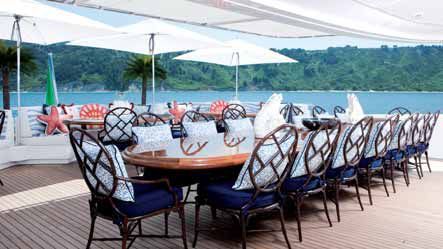

The ISA 630 Motor Yacht Kolaha - Alfresco Dining
Motor Yacht Kolaha is the owner’s third ISA yacht, from 40 meters to 47.5 to 63. The owner wanted a roomy interior and rich comfort with ample seating, a variety of materials combined between them and many original details. But above all, required to include elements that remember the sea have been grafted frescoes and sculptures of shells. In addition, next to dining room table, we have placed a particular sculpture of coral in which each is a member of the five horses in the family.
Interior designer Patrick Knowles: I started working in a company that operated with this material and I just kept the love of wood in all these years. It is versatile and allows me to express my creativity in many ways: it can be painted, varnished, filed, or bent polished. Not to mention the forms it can take. Whatever the style of an extension (ancient, contemporary, modern or minimalist) wood is the common denominator.

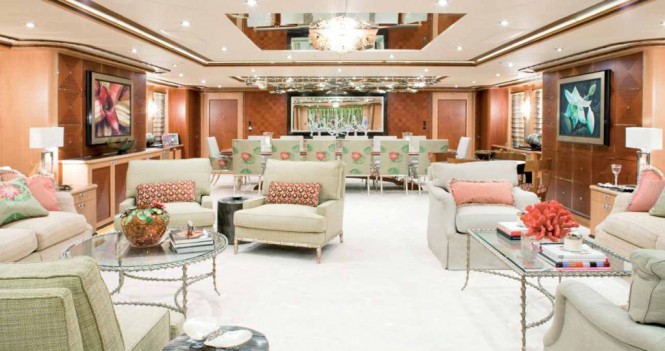

The ISA 630 Motor Yacht Kolaha - lounge
As for the interior of Kolaha, the owner wanted them to be treated by American designer Patrick Knowles, who gave a touch of internationality. The aim was to highlight the owner’s characteristic of the American Boat large space and comfort and at the same time, create an atmosphere which is found only in the Caribbean resort.
Knowls studied any décor focusing on the exaltation and pleasure of the five senses. First, the view: the colours blend to recreate a “nest” comfortable and reassuring. Hearing: All audio systems are of high quality and perfect isolation allows for smooth sailing. The feel: they have been chosen, for example, tissue specific to the floor of each environment, so that you can understand that point of the ship you are fingering the carpet under their feet.

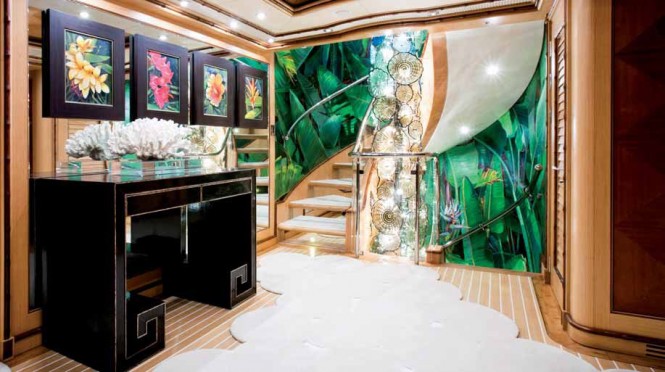

The ISA 630 Motor Yacht Kolaha - The Foyer
M/Y Kolaha has Onyx Marine Automation which has created a system approved by Lloyd’s Register of integrated automation, which has 5 touch screens on which they are displays all the functions on board. In the pictures the salon on the main deck and outside can welcome 14 guests.
This vessel utilised 10 types of different marble: Alba clear, Emerald quartz, onyx, cappuccino onyx ivory, green water navy, green Bambolo, Laguna Green, white Thassos wild Chianti, various mosaics.

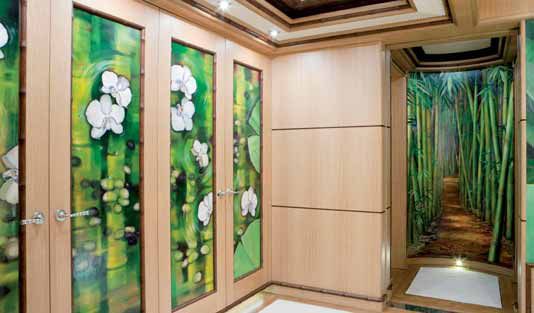

The ISA 630 Motor Yacht Kolaha - Interior detail
Superyacht Kolaha Specifications:

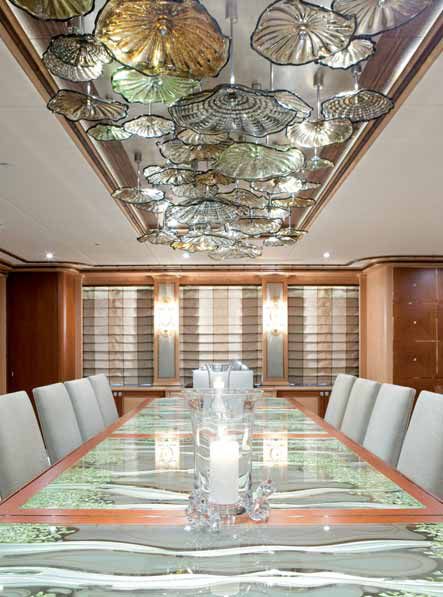

The ISA 630 Motor Yacht Kolaha - Dining
MANUFACTURER Isa Yachts, Ancona.
Isa-Antonio Longobardi (naval)
• Andrea Vallicelli (external)
• Patrick Knowles Design (Interior)
• Optimization bulb and trim wedge: Marin Holland
HULL Length • 63 m length at waterline 56.38 m
• Width 12 m 6.25 m
weight • 1,030 tons full load weight to 950 half ton load •
• 130,000 liters fuel reserves
• Capacity 35,000 lt water sewage / gray • Capacity 22,000 lt
water and waste oils lt 2600
• maximum speed 17.5 knots
• 15 knots cruising speed range at cruising speed
• 2700 nm range at 12 knots 5,500 nm
Two Caterpillar 3512 C MOTORS • 2400 hp (1765 kW) •
1,800 rpm / 58,560 m • cc • Bore x stroke mm 170 x 215
• weight 7411 kg
CERTIFICATION Lloyd’s Register of Shipping 100
A1 SSC Yacht Mono G6 LMC, Ums Category
MCA Code of Practice, unrestricted Ly2
Some figures:
Peak manpower max: 110 people
Interior construction time: 18 months
Paint filling time: 15 months
Hull Characteristics:
• iron displacement hull material AH36
• hull weight about 400 tons • main blocks
Features superstructure:
H321 5083 • Material superstructure weight
about 70 ton main blocks • 12 units
Other main features:
Weight plastering / painting and insulation: about 60
ton • colour stucco / paint: Moonstone and stark
• white weight machinery / propulsion / generator / pipes:
more than 100 tons • generators X3 Cat C9 200 kW generator • 1
• 82 kW emergency stabilizers: 4 fins Quantum zero speed
weight system • Electronic / Home Automation: • 5 ton placed wires: about 140 km
• cost of shipping / Home Automation: More than 1 million € • cabinets
indoor: about 20 • air-conditioning system • Condaria FCU / chillers
• water • 4 compressor Refrigerant: R407C present FCU • 57 • underwater lights 24
• bodies some 600 interior light • Full hotel consumption: 300 kW • container
• preparation for the final seven square meters available to guests for indoor
• 500 square feet available to the crew of interior 260

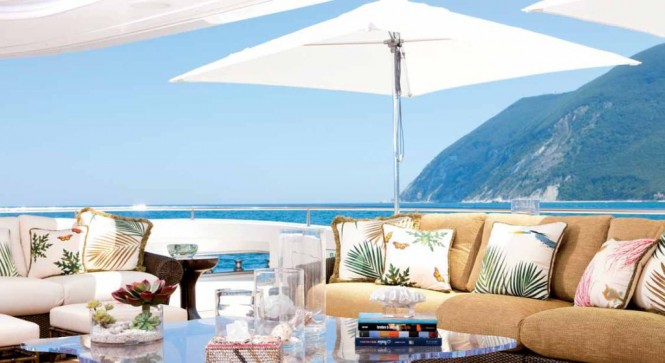

The ISA 630 Motor Yacht Kolaha - Aft Deck
Home automation systems: A fun and function:
Isa 630 is equipped with an advanced audio-video entertainment system designed, built and installed by Videoworks. Great attention was given to the view hd video, using a Kaleidescape video server and digital audio-optimal audio quality. In addition, through a touch panel monitor is off, the owner and guests have the ability to use your iPod as audio sources.
The technology includes: audio video equipment, networking and cctv, wifi coverage phone and DECT (Digital Enhanced Cordless Telecommunication) throughout the yacht; cctv camera display on tv, signal distribution on all plotter cabins (mapping); Jotron intercom system for operation and communication local emergencies; interfacing with the automation system for the board managing music, lights, alarm monitoring from the wheelhouse on the screens, disco in the garage with auxiliary inputs for equipment dj mixer.

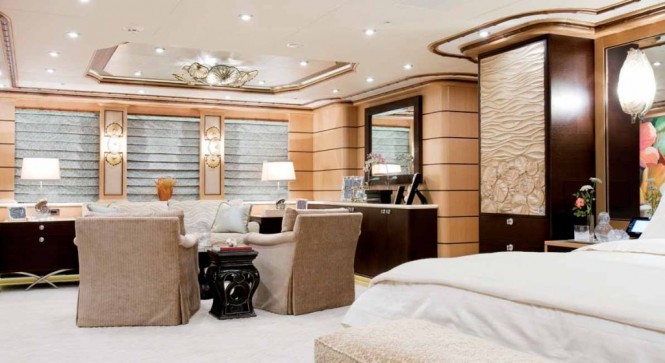

The ISA 630 Motor Yacht Kolaha - Master Cabin
For the part of home automation and control of very large doors, curtains and light is through Lutron Homeworks system 4 also has aesthetically coordinated accessories for the plates to wall power and the LAN / phone: everything is controlled touch panel from Crestron, also built in outdoor areas (after appropriate Protection against water and weather conditions) for the management party mode (music coordinated in all public areas of the boat) and lights.
The design and preparation of the yacht lasted almost two years. In the big picture, the sumptuous apartment of the owner cared in detail and full of precious objects. To the side, his bathroom. The materials used for the rooms are 8: Palm light, dark Palm, Coconut basketball, Coconut shell curves, oak, bamboo (The floor), wenge, burl, mahogany ‘Honduras.
The ISA 630 Motor Yacht Kolaha - GA
