The 77m motor yacht Smeralda is the third and most advanced vessel in the spectacular ground-breaking Silver Series designed by world-renowned Espen Øino. Now nearing completion at Hanseatic Marine in Australia with delivery due for the Spring of 2012, the Smeralda superyacht is expected to become one of the most remarkable superyacht launches of this year.

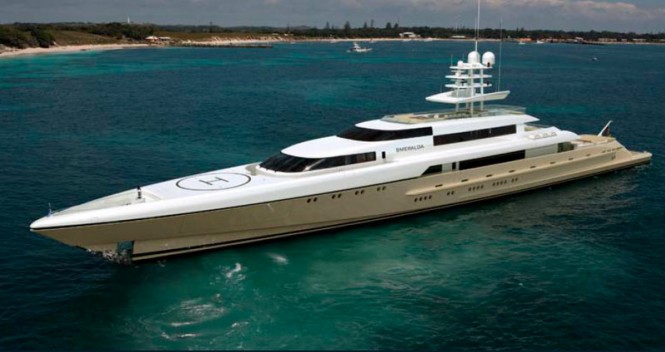

77m Superyacht Smeralda by Hanseatic Marine and Espen Oeino
At 77 metres, the luxury yacht Smeralda is equipped with powerful engines to deliver enhanced performance with anticipated top speeds of nearly 30 knots, while retaining extraordinary fuel efficient credentials.

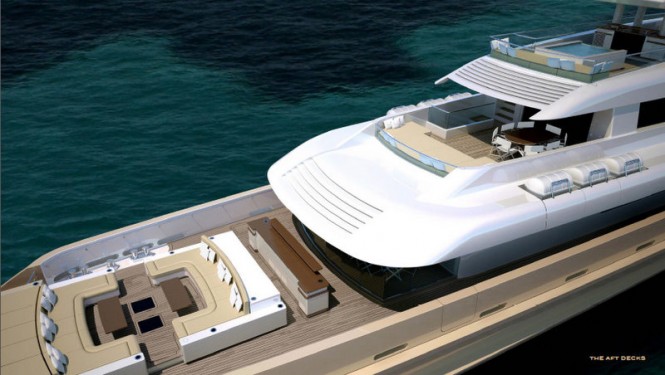

Smeralda Superyacht´s Decks

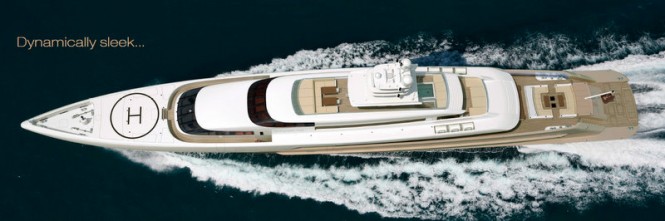

The luxury yacht Smeralda - view from above
The 77m Smeralda megayacht’s expansive deck spaces are designed to optimise outdoor living in comfort and style. From the sun deck and the aft facing private owner’s deck down to the impressive main deck itself, and the extended ‘beach club’ at sea level, the overall look is effortless, contemporary and stunning.

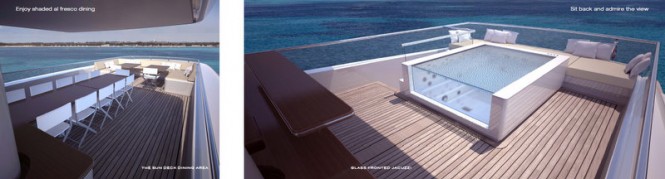

The 77m Super Yacht Smeralda Exterior

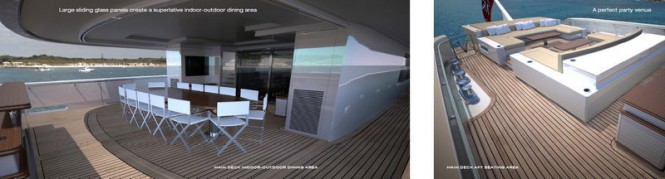

On board the luxury yacht Smeralda
The luxurious interior on board the superyacht Smeralda features a serene combination of streamlined design elements and elegant walnut panelling setting the tone for a relaxed lifestyle afloat. Her main saloon is framed by large picture windows affording plenty of natural light and offers a more expansive seating plan than her predecessors.

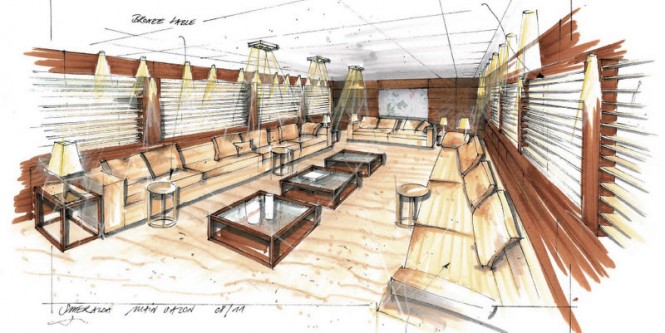

Smeralda Superyacht´s Luxurious and Contemporary Interior
Technical Specifications of the 77m luxury motor yacht Smeralda:
Yacht Design & Styling: Espen Øino International, Monaco
Naval Architecture: Espen Øino International, Monaco / Hanseatic Marine Engineering, Australia
Interior Design: Vain Interiors
Builder: Hanseatic Marine, Australia
Year: Spring 2012
Length Overall: 77.0m (252.6ft)
Beam (moulded): 10.0m (32.8ft)
Draught (hull): 2.6m (8.5ft)
Gross Tonnage: 865 tonnes (estimate)
Displacement: 560 tonnes
Speed (max): 29 knots (approximately)
Range: 4,500 nm at 18 knots
Diesel Fuel Capacity: 112,000 litres
Freshwater Capacity: 31,000 litres
Construction: Aluminium hull & aluminium superstructure
Classification: Lloyds Register 100 A1, SSC, YACHT, MONO, G6, LMC, UMS MCA LY2
Administration: Cayman Islands – LY2 (MCA Large Yacht Code)
Main Engines: 2 x 2720 kW @ 2000 rpm – MTU 16V 4000 M90
Main Generators: 3 x Northern Lights 1066H Diesel
Generators (155kWe): Emergency Generator 1 x Volvo D7A T Diesel Generator(111kWe)
Bowthruster:1 x American TRAC Series – 150kW Electric
Stabilisers: Quantum Zero Speed Ride control fins (1 pair forward, 1 pair aft)
Accommodation
Owner’s apartment with lounge and large private deck
3 x VIP double cabins
2 x twin cabins + Pullman
4 x twin cabins
1 x captain’s cabin with ensuite
3 x crew single berth cabins with ensuite
6 x crew twin berth cabins with ensuite
Tenders & Water Craft
2 x 7.3m custom built tenders with 220hp Volvo-Penta Stern Drive
2 x Sea-Doo Personal Water Craft (owner’s supply)
2 x Seabob (owner’s supply)
Spa/Sauna
Customised 8-person spa / customised sauna

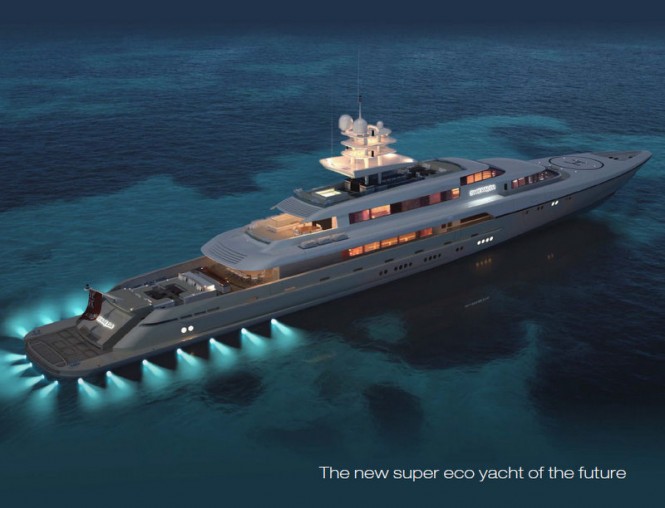

77m luxury motor yacht Smeralda by night
