Turkish builder Vicem currently have a Vulcan 35-meter tri-deck motor yacht in build at their new 25 million dollar yard in Tuzla, Turkey located an hour from Istanbul airport. The new Vicem 35m motor yacht measures 36.2 m (118′ 8″) in length and features Naval architecture by Mulder Design and interior design by Ken Freivokh.
The mold for the hull and superstructure is presently under construction and the yacht construction will start shortly. The 35M Vicem trideck is built in the same mold as the 35M Vicem raised pilothouse which is also a Frank Mulder design.

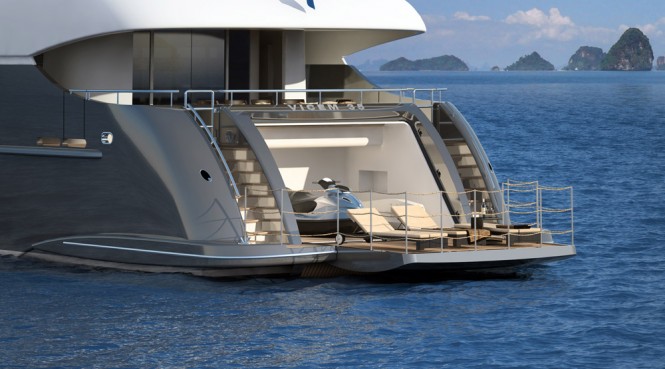

VULCAN 35 M Tri-Deck motor yacht is a very sleek yacht for its length featuring a Hard Chine V planning hull with no tenders visible. The tender is hidden in the foredeck and there is additional garage storage at the transom, with a fold-down beach club.

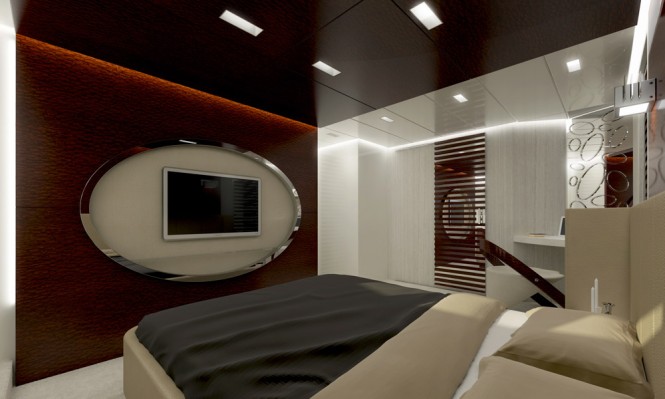

Vicem Vulcan 35M tri-deck yacht is able to accommodate up to 10-12 guests in a 5 stateroom layout which includes 2 full beam VIP suites. There is a double bedded captain’s cabin on the main deck behind the wheelhouse and two double crew cabins with a lounge and galley in the crew quarters.
The Vulcan 35m motor yacht by Vicem will boast twin 16V 2000 MTU M93 engines enabling her to reach a top speed of 23 knots with a cruising speed of 21knots. Her range at maximum speed will be around 690NM with a range of 96NM at cruising speed.

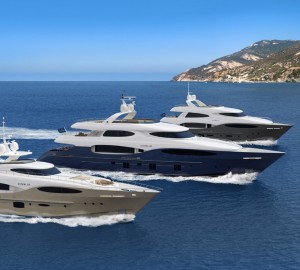

The Vulcan Line is a celebration of Vicem’s entry into the mega-yacht world. The new series is represented by the Vicem 46m super yacht, the Vulcan 35m tri deck motor yacht, and the 32m RPH Raised Pilot House yacht all of which will be launched in 2011.
The Vulcan range from Vicem yachts features design from renowned Dutch Naval Architect Frank Mulder and the award-winning interior design firms of Art-Line Interiors, Wetzels Brown Partners and Ken Freivokh.
Vicem Vulcan 35M tri-deck yacht Principle Dimensions:
|LOA||118′ 8″ – 36.2 m|
|LH||113′ 8″ – 34.69 m|
|LWL||98′ – 29.87 m|
|BEAM||26′ 44″ – 8.06 m|
|DRAFT||7′ 65″ – 2.33 m|
|MAX. PERSONS ON BOARD||18|
|CONSTRUCTION||Corecell Sandwich Construction|
|HULL TYPE||Hard Chine V planning hull|
|FUEL TANK||7565 gal – 28000 lt|
|WATER TANK||1460 gal – 5400 lt|
|Naval Architect||Mulder Design BV|
|Interior Design||Ken Freivokh|
|Certifications||RINA CROSS HULL (BALL) MACHINERY, CHARTER CLASS, SHORT RANGE|
|ENGINES||2x 16V 2000 MTU M93
@ 2450 rpm
|MAXIMUM SPEED (knots)||23 knots|
|CRUISING SPEED (knots)||21 knots|
|RANGE at MAXIMUM speed||690|
|RANGE at CRUISING speed||965|
|DISPLACEMENT (DRY)||297624 lbs- 135 T|
