Developed by the Italian shipyard Vismara Marine in partnership with the owner, the 27-metre motor yacht Vismara 90 is a spectacular fast explorer project, boasting unique features mixed up with a special performance for quick trips using the ‘vismatematics’ formula of: advanced composite construction = light weight = small engines = less fuel consumption & noise. Thanks to this special formula, Vismara 90 superyacht features a good stability in raff sea, comfort, displacement range, as well as safety, just like an explorer vessel.

Luxury expedition yacht Vismara 90 by Vismara Marine

Vismara 90 yacht is an evolution of the Vismara 68 Navetta, in the design and construction approach, developing it in the theme “light sailing” with precise input of its owner, who wanted unique characteristics, not present in other products of the market: maximum performance at around 35 knots for quick movements, seaworthiness and comfort of a shuttle displacement, range and security of an explorer vessel. This resulted in a modern motor yacht, where technology plays a dominant role, in style Vismara. The guarantee of a high quality construction, able to maintain its value over time, completes the picture of a project not only luxurious, but anticipates the concept of yachting in the coming years.

The medium-light displacement is obtained thanks to a construction with advanced composite materials and computational fluid dynamics programs for the hull design, all in order to reduce the rolling resistance and optimizing the ‘glazing’. It is also the first boat of this size with the “reverse bow”, developed in military vessels to obtain a better penetration of the wave, resulting in more comfort while cruising in rough seas.

Vismara 90 superyacht - Dining

Extensive studies have led to an efficient propulsion through the use of ducted propeller 6 blades “high skew”, rudders and side arms with propeller in hydrodynamic profiles specially designed. 1700 hp for 2 engines, in a speed of 30 knots and a range of 1,000 miles at 25 knots cruising thanks to its light weight, the Vismara 90 yacht glides only 15 knots, providing the ability to navigate in low speed with high efficiency and low fuel consumption. The maneuverability is ensured by a modern system of bow and stern thrusters by remote control management to move sideways, forward and backward or to spin the boat anywhere needed.

Thanks to modern integrated systems and the electronic energy management for the air conditioning and most of the functions it is possible to enslave the batteries through inverter technology power by “switching”, without the use of the generator, big advantage for generator noise nad ecology of use. For a futher reduction in weight it is possible to use lithium batteries.

Aesthetically, the ‘clean’ style characterized by a large deck with solutions like concealed anchor system under the hull, companionways and flush deck, retractable bollards and mooring winches hidden and walled raised without handrails, as well as a very large fly bridge, provides accommodation for a 3-4 crew members, 2 laundry rooms and aft storage with separate entrance, 2-4 VIP guest cabins. The whole furnishings effect is rich and comfortable, as Vismara’s tradition, with sandwich teak paneling used also as structural panels and therefore very light. The garage allows stowage of a 4 m dinghy, while the other speed boats or jet skis can be loaded on the fly bridge thanks to the long crane arm.

Luxury yacht Vismara 90 - Salon

Technical Data of the 27m Vismara 90 yacht by Vismara Marine:

Length 27.50 M
Hull Length 23.99 M
Beam Max. 7.00 M
Draft 1.20 M
Engines 2×850 HP Caterpillar
Maximum Speed 35 KTS
Maximum Speed (half load) 26 KTS
Displacement 45,000 KG
Full Load Displacement 65,000 KG

27m Vismara 90 yacht by Vismara Marine

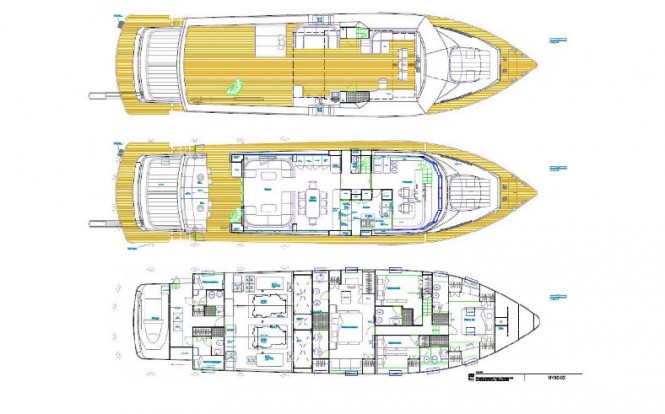

Vismara 90 yacht - Layout
