PURA, is the latest superyacht concept by the renowned luxury yacht builder Royal Huisman from the Netherlands in collaboration with Frers Design, offering an almost unlimited potential to share the hull, deck and superstructure based on the Owner’s vision and desires. Complete flexibility and customisation are available for the interior design, with a blank sheet of paper as a starting point.

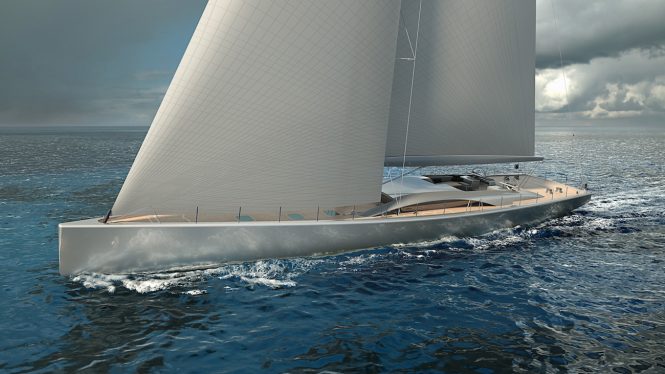

PURA Visual Contemporary profile

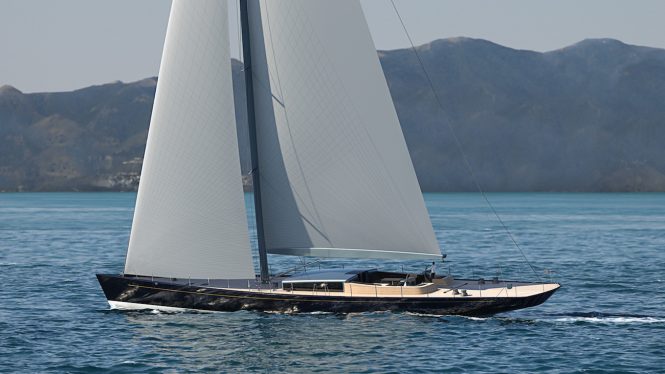

PURA Visual Retro version
As known for all the Royal Huisman yachts, PURA incorporates a proven, strong and reliable technology platform with the core technology platform for all operating systems done to 80%. Designed by Mani Frers, from the naval architecture and designer company Frers Design, which is almost an instant guarantee to performance and good seakeeping qualities.

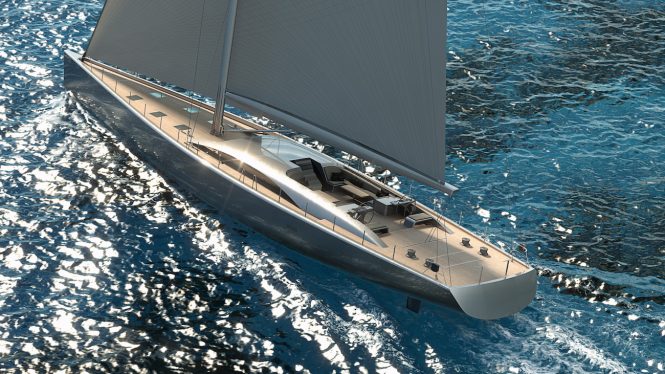

PURA Visual Contemporary sailing

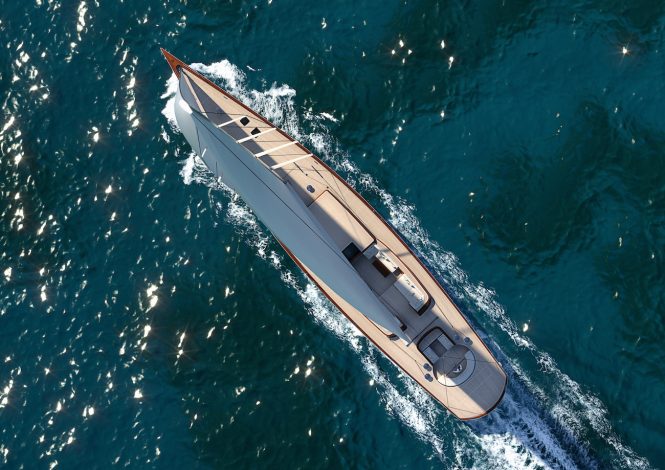

PURA Visual Classic-aerial view
Accommodation for up to eight guests includes one master cabins, three twin guest cabins with one convertible into a double. There are also three crew cabins for up to six guests. The layout is flexible with two options for the master cabin: eight situated aft or forward.

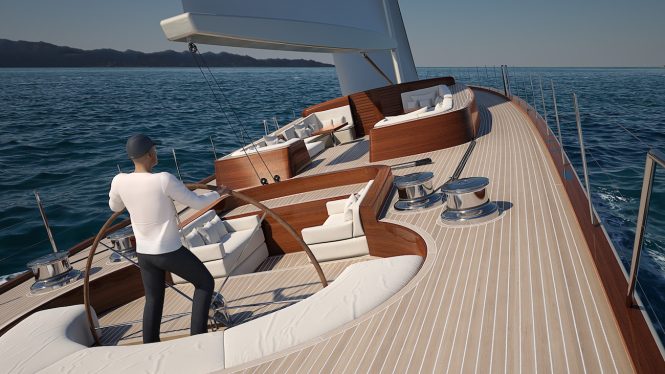

PURA Visual Classic cruising
Additional options include lift keel, performance boom, full continuous CF rigging fore regattas; retractable stern thruster, hydraulic telescopic passerelle, extended NavCom package for world-wide voyages or eco options including additional battery package ‘Silent Nights’, shaft generator.
PURA interior styling example by Breedmedia
PURA interior styling example by Carlo Baroncini
DIMENSIONS
Length overall (range) 38-43 m / 125-141 ft
Length waterline (range) 35-36 m / 115-118 ft
Beam 8.0 m / 26 ftDraft fixed keel (range) 3.6-4.6 m / 11.8-15.1 ft
Draft lift keel, optional 3.1-5.4 m / 10.2-13.1 ft
Displacement (range) 125-130 t / 275,000-290,000 lbs
Hull speed | Range 14 kn | 2650 Nm @ 9 kn
Rig dimensions
I 42.7 m / 140 ft ~ P 44.6 m / 146 ft ~ E 16.5 m / 54 ft ~ J 13.2 m / 43 ft
Sail areas
Main sail 443 m² / 4790 sq ft
Jib 298 m² / 3100 sq ft
Staysail 131 m² / 1420 sq ft
PURA interior styling example by Breedmedia
TECHNICAL INFORMATION
Steering system
Manual, composite twin spade rudders
Power & Propulsion
Main engine 1x 300 kW
Propeller Folding
Electric bow thruster 1x 55 kW
Generator 2x 38 kW
Tank capacities
Fuel storage 10,000 l
Freshwater 3,000 l
Wastewater 2,400 l
Deck equipment
Anchor system Submarine
Hatches Flush composite
Captive winches Electric
Deck winches Electric
