The construction of a new Logica 98 yacht is about the start, which is the first unit of the new Logica series. The first Logica 98 motor yacht has been bought by an Italian owner and is due for delivery during the 2012 summer season.

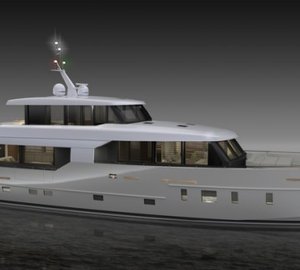

Logica 98 yacht
The exterior lines of the Logica 98 motor yacht and the other models in the Logica range have been designed by Luca Brenta Yacht Design.
This Logica 98′ will be able to accommodate up to eight guests in four staterooms however, a further two guests can be accommodated if desired. The owner has opted to have the master suite forward on the lower deck instead of forward on the main deck. There is also accommodation for up to 4 crew members.

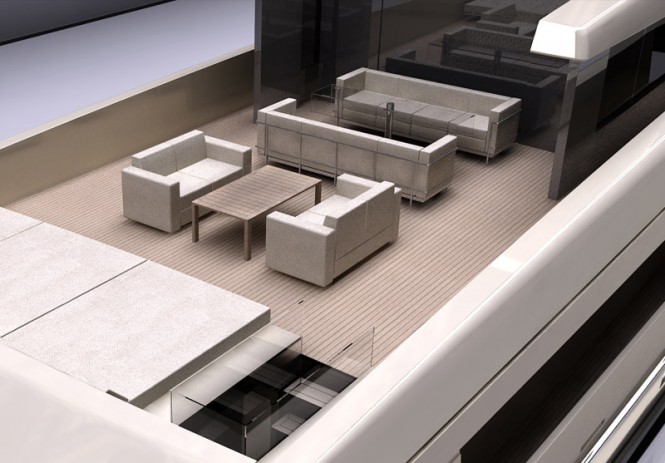

Motor Yacht Logica 98
Large windows are featured in the lower deck cabins along with mirrors positioned in the corners of the rooms to reflect and increase the amount of natural light penetrating the staterooms. There are also large windows on the main deck providing an abundance of light in the main saloon and dining area.
Motor yacht Logica 98 will be powered by twin MAN D 2842 LE 413 engines that are expected to generate a maximum speed of around 14.5 knots with a cruising speed of 13.8 knots. The range at cruising speed will be approximately 1,500 nautical miles and at an economic cruising speed of 10 knots the range is should be extended to over 3,000 nautical miles.
Engineering work in the 29.76 m motor yacht has been completed and the shipyard will commence the construction soon.
Logica 98 motor yacht – Luca Brenta Yacht Design
- Overall length: m 29,76
- Length at water line: m 28,30
- Max beam: m 7,00
- Molded Depth: m 3,75
- Design draft: m 2,05
- Inside height at main deck: m 2,05
- Light Ship displacement: ton 118
- Fuel tanks capacity: m3 34,50
- Fresh water tanks capacity: m3 5,70
- Black water tanks capacity: m3 1,25
- Guest: n° 8+2
- Crew: n° 4,00
TECHNICAL DETAILS
- Max speed at 1/3 load conditions: Kn 14,50
- Cruising speed: Kn 13,80
- Range at cruising speed: NM 1.500
- Range at 10 kts economical cruising speed: NM 3.200
PROPULSION SYSTEM
- Main engines: 2 x MAN D 2842 LE 413
- Max power: Hp@Rpm 1.000@2.100
- Generator: Kw 2 x 28 + 1 x 12
- Propeller: 2 x 5 blades
- Bow thruster: Kw 1 x 50
