New 57m Explorer Yacht Design by Sergio Cutolo of Hydro Tec

April 11, 2013

Written by Zuzana Bednarova

The prominent Italian design studio, Hydro Tec, relying on its founder Sergio Cutolo‘s extensive experience in explorer yacht design,  introduces its very new 57m Explorer yacht concept. The spectacular 57-metre Explorer yacht project has been developed with the aim to optimize the spaces onboard to provide maximum comfort to her guests.

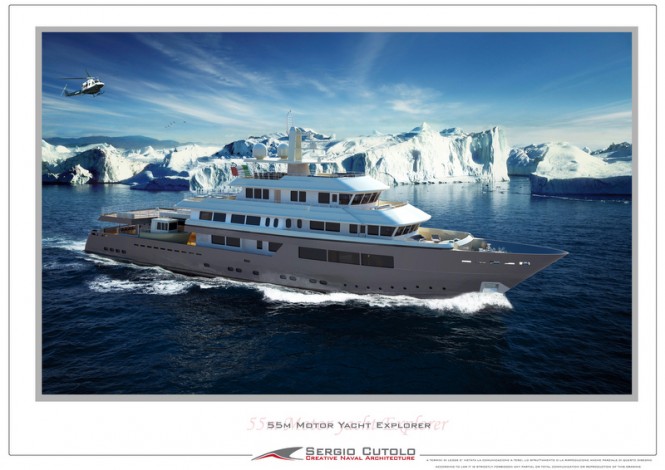

New 57m Explorer Yacht Design by Sergio Cutolo of Hydro Tec

New 57m Explorer Yacht Design by Sergio Cutolo of Hydro Tec

The designer made preliminary sketches to a brief, adding to the 57m Explorer superyacht project several solutions that will allow a smarter and more complete use of the onboard spaces, making it possible for the yacht to be equipped with a range of facilities that are usually more common to larger vessels.

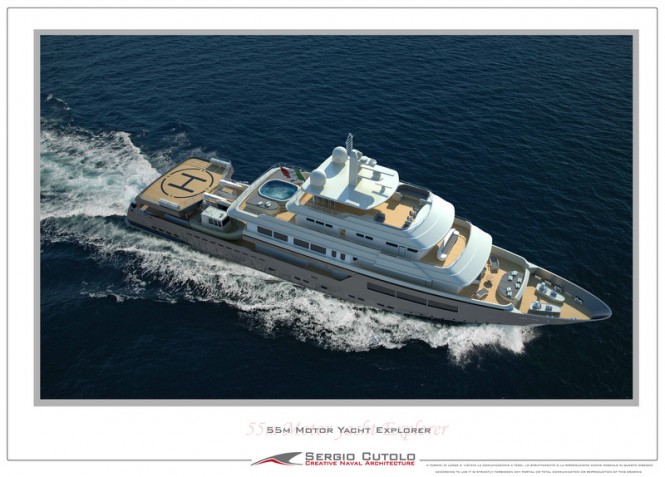

57m Explorer superyacht design - upview

57m Explorer superyacht design - upview

A touch and go helicopter pad can thus be found on the new 57m Explorer yacht design, as well as tender slightly bigger than usual; it is exactly the solution founded for the tender storage that contribute mainly to the increased space availability onboard.

Storing tenders on either side of the main deck, frees up the aft part of the boat, so this could become easily a beach club, a sauna area or it could also be the garage for additional toys: there is indeed the possibility to set up an area dedicated to the storage for a small Triton submarine.

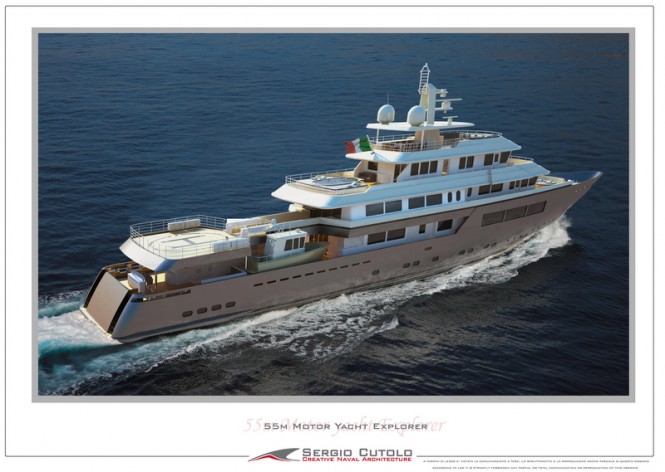

Explorer 57 Yacht Concept - aft view

Explorer 57 Yacht Concept - aft view

Besides the challenge to create on a relatively small platform a real ocean going vessel, the 57m Explorer Yacht was also wanted to be suitable for exploration in cold as well as hot climate: this explains why, in one of the various layout proposals all the Yacht’s spaces has been made accessible without the need, for guests, to go through the external areas. The aft area, for instance, could be accessed through a corridor located on the lower deck, that goes through the engine room space: a very good solution for extreme climates.

The owner will be provided with a Yacht that could be ideal for permanent living, both comfortable and safe in every weather. The layout plan offers the guest four double cabin, plus a Vip cabin, while a full deck is entirely dedicated to the Owner, with a huge cabin looking forward through big windows and with a huge terrace overlooking the bow area. Other details that enriches the projects are a luxurious sky lounge, a generous aft deck with a spa pool on the upper deck.

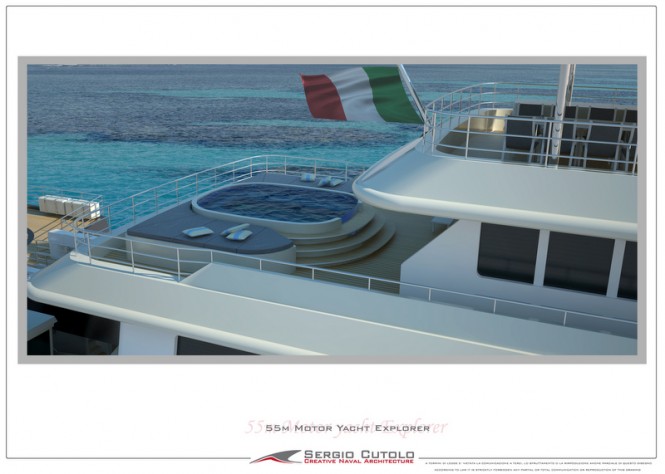

Luxury yacht Explorer 57 concept - Exterior

Luxury yacht Explorer 57 concept - Exterior

A huge space is given to the crew area, which has been designed in compliance with the latest Regulations, and which include a generous under lower deck where all the storage and refrigerated compartments are located.

Equipped by twin MTU 12V 4000 M 63 coupled to conventional shaft lines, the Explorer 57 yacht concept has a top speed of 16 knots and a cruising speed of 15. With a fuel tank capacity of 129.000 Lt  the range is 3000 miles at 15 knots, or 5500 miles at 13 knots.

Maneuvering will be implemented by a bow thruster and the 57m Explorer superyacht will be equipped by four zero speed electric stabilizers. The project also considers the possibility to equip the vessel with diesel electric or hybrid propulsion systems.

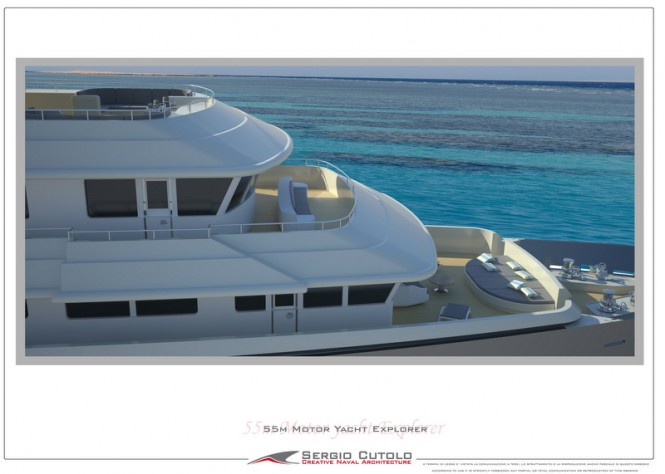

57m Explorer superyacht design by Sergio Cutolo - Decks

57m Explorer superyacht design by Sergio Cutolo - Decks

Main characteristics of the new Explorer 57 superyacht concept by Sergio Cutolo of Hydro Tec

Lenght, overall: 56,80 m
Lenght, waterline: 49,80 m
Beam, max: 10,50 m
Depth: 5,50 m
Draft, full load: 3,30 m
Displacement, full load: 752 t

Engines: 2xMTU 12V4000M63 (2x1492kW @ 1800 rpm)
Speed max: 16 knots
Speed, cruise: 15 knots
Fuel tank: 129000 lt
Water tank: 28000 lt
Guest Cabins: 6 (12 berths)
Crew Cabins: 8 (14 berths)

Naval architect: Sergio Cutolo
Exterior designer: Sergio Cutolo
