The 87 m Explorer Yacht ‘Oceanic’ Conversion by Icon Yachts and Three Seas

April 29, 2011

At 87 metres the Icon Yachts and Three Seas ‘Oceanic’ yacht conversion is a large and very impressive project. The companies are converting the huge 87 metre “Oceanic” superyacht from a commercial tug boat which was originally built in Germany in 1969.

This interesting luxury explorer yacht conversion project will make motor yacht ‘Oceanic’ one of the largest private luxury yachts in the world with ocean-going ‘go anywhere’ capabilities and an ice class hull (classed to Germanische Lloyd).

The Oceanic Explorer Yacht

The Oceanic Explorer Yacht

This massive superyacht will not only be a rugged work vessel that can take her owner anywhere but she will also provide the luxuries of a private superyacht with a exterior & interior design proposal by Felix Buytendijk, Netherlands . Features will include versatile and large Tender storage, water and land ‘toys’, a submarine or day sailor boat carrying capacity, a helicopter pad option to MCA, a 12 metre main deck pool option and of course a stern bathing platform.

Oceanic Tug in heavy weather before conversion by Icon Yachts

Motor yacht Oceanic has a top speed of 20 knots with her 2 x DEUTZ Diesels engines (SBV 12 M 640) which are supercharged and producing a total of 13,200 bhp. Each engine is geared to single shafts with win variable pitch propellers in fixed kort-nozzles.

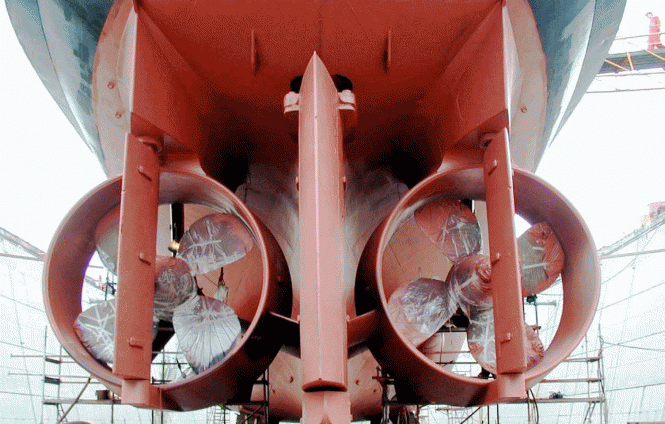

Superyacht Oceanic Propellers

Three Seas, Hamburg,  is a German project management company which has already completed some very impressive superyacht conversions – they have also conveted the explorer yachts ARCTIC P, LONE RANGER, and KHOZAM. Icon Yachts are already well known as a large luxury private yacht design and build company whih is baed in Holland.

There will be two different external design proposals for yacht Oceanic, as well as a choice between two accommodation arrangements, being:

Proposal Layout ‘A’: 12 Guest + 1 Owner’s Suite, 16 Crew + Captain
Proposal Layout ‘B’: 16 Guest + 1 Owner’s Suite, 16 Crew + Captain

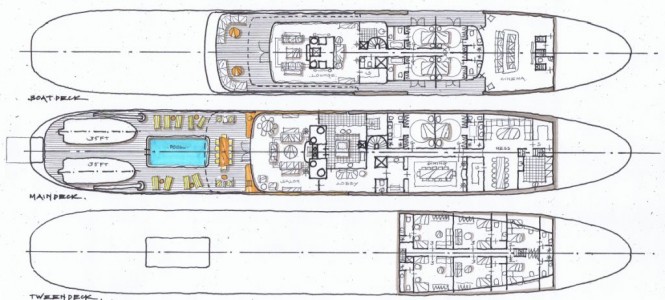

Yacht Oceanic Layout Option



M/Y Oceanic was originally built in Germany, in 1969, and had her 5-year class survey in mid-2010. With detailed exterior styling, and interior architecture of up to 1,300 m2 conceived by Dutch designer Felix Buytendijk this is already a well-planned conversion project. She could be re-delivered by February 2012, where she would reach a prestigious position in the list of the largest super yachts afloat.

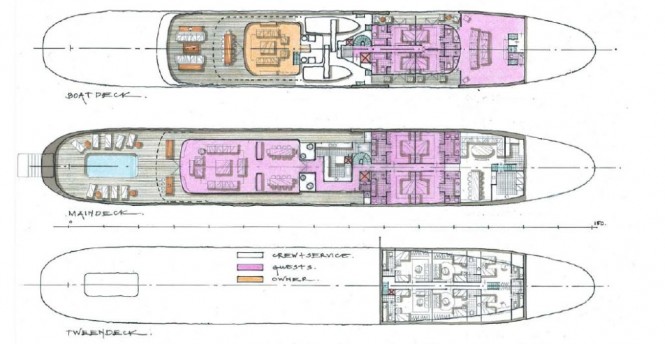

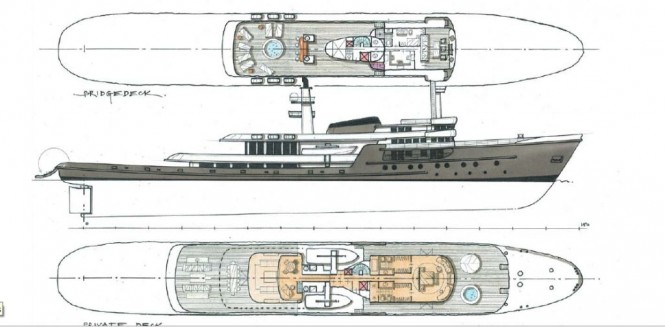

Oceanic Layout Option 2

With detailed exterior styling, and interior architecture of about 1,300 m² conceived by Dutch designer Felix Buytendijk superyacht Oceanic is already a well-planned conversion project. Motor yacht Oceanic could be re-delivered by Spring/Summer 2012, where she would reach a prestigious position in the list of the largest super yachts afloat.

Oceanic Layout GA 2



THE CONVERSION PROJECT 87M YAHCT “OCEANIC” DETAILS:

Yacht Oceanic Technical Details:

HVAC: Air-conditioning of all interior, hospital, engine control room, and machine workshop
Gyro, 2 x Radars, AIS, 3 x Echo Sounders, Visual D/F, SAT Navigation, DGPS, ECDIS, VDR
Transmitters / Receivers for all frequencies on R/T, SSB, VHF, GMDSS / A3, Inmarsat B, Inmarsat C,
0MMSI, Sito, Weather Fax, VHF direction finder
Electrical current: 220/380V 50 Hz, DC 3-phase via cable or portable generators
Considerable supply of hoses for oil, fresh water, compressed air, portable compressor
Extensively equipped machine workshop
Built in Germany in 1969 Oceanic is still in well-maintained condition, having undergone her
5-year Class Survey in mid-2010

Tug Explorer yacht OCEANIC interior - before conversion by Icon Yachts

Currently Oceanic is on charter for the German Government, becoming free January 2011.

Built in Germany in 1969 M/Y Oceanic is still in well-maintained condition, having undergone her 5-year Class Survey in mid-2010.

The Luxury yacht Oceanic is now available for immediate sale, and is available upon closure of her charter contracts from February 2011.

Oceanic Yacht Interior before conversion by Icon Yachts

Explorer Yacht OCEANIC DESIGN PARTICULARS:

Classification Germanischer Lloyd + 100 A4 (E3)
LOA 87.50 m
Beam 14.35 m
Draft Max. 7.30 m
Draft Light 6,00 m
GRT 2294 t
Speed 20 knots
2 x DEUTZ Diesel
Type: SBV 12 M 640 supercharged and each geared to single shafts
Total: 13,200 bhp
1985 Re-engined, since then 38.000 h
Propulsion: Twin variable pitch propellers in fixed kort-nozzles and a bow thruster
with 625 ihp
2 x Electro-hydraulic towing winches
2 x Tugger winches on the Main Deck
4 x winch-heads
2 x 28 tons each forward
2 x 21 tons each aft
Fire fighting: 3 x monitors with a total pump capacity of 700 tons/hour
5 x Searchlights of 450W; 1,000W; 1,600 W
Cranes: 1 x on Main Deck aft, 3.1 tons S.W.L. max 16 m outreach
Bunker: 1,400 m3

Accommodation: see proposed GA Plan

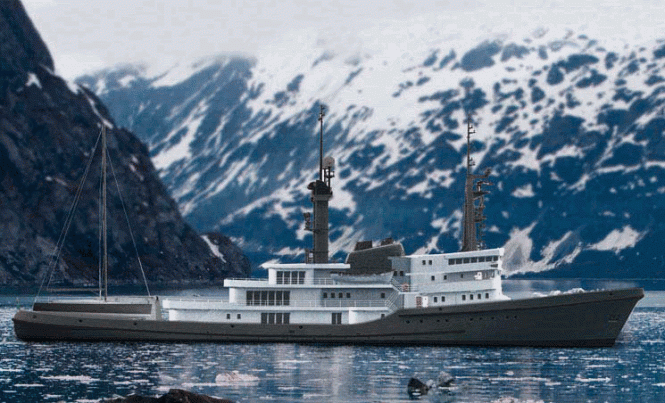

Three Seas are also converting private expedition yacht KHOZAM

HVAC: Air-conditioning of all interior, hospital, engine control room, and machine workshop

Gyro, 2 x Radars, AIS, 3 x Echo Sounders, Visual D/F, SAT Navigation, DGPS, ECDIS, VDR Transmitters / Receivers for all frequencies on R/T, SSB, VHF, GMDSS / A3, Inmarsat B, Inmarsat C, MMSI, Sito, Weather Fax, VHF direction finder

Electrical current: 220/380V 50 Hz, DC 3-phase via cable or portable generators.

Considerable supply of hoses for oil, fresh water, compressed air, portable compressor.

Extensively equipped machine workshop

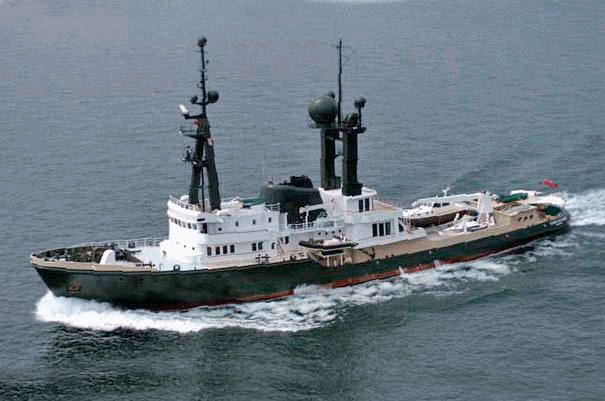

LONE RANGER

PROJECT PARTNERS
Project Management: Three Seas, Hamburg who also converted expedition yachts ARCTIC P, LONE RANGER, and KHOZAM.

Exterior & Interior Design Proposal: Felix Buytendijk, Netherlands

About Felix Buytendijk Yacht design
Felix Buytendijk Yacht design hass been involved in the in- and exterior- styling of numerous custom sail, motor and production yachts, with a specialisation in large refits where yachts can be brought under the complying rules and regulations. International awarded  for the design of 3 motoryachts, 2 buildings and at present nominated for the World Superyacht Award 2009 with the 45 mtr ”My Trust”. Worked and works in relation with: Diana Yacht Design, DSG, Michael Peters Yacht Design, Willem de Vries Lentsch, Vripack, De Rover, Ginton & Weber, Herman Jansen.
