A Summary of Motor Yacht AGRAM

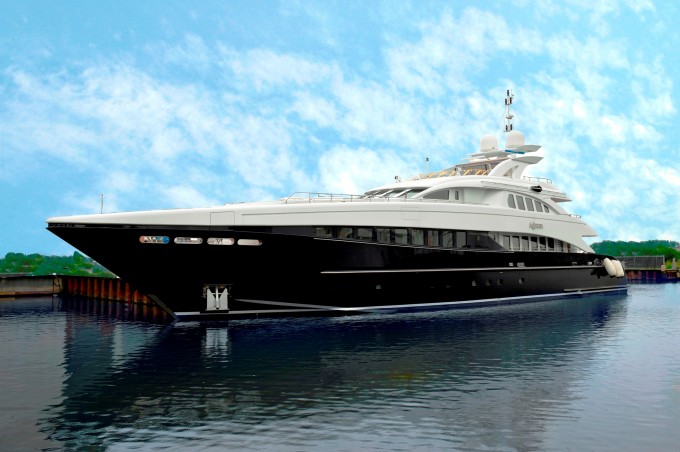

AGRAM used to be project/yacht name (Project Klobuk Ii). This 44 metre (144 ft) luxury yacht was produced by Heesen Yachts in 2008. Motor Yacht AGRAM is a spacious superyacht. The naval architecture office responsible for this yacht's drawings in respect of this ship is Heesen Yachts Design Team and Omega Architects. The vessel had interior is the work of the talented Omega Architects / Lovosovic / Owner. Luxury yacht AGRAM is a handsome yacht that can accommodate a total of 10 guests on board and has a total of 9 crew.

Building & Yacht Design for Luxury Yacht AGRAM

Heesen Yachts Design Team was the naval architect involved in the professional nautical composition for AGRAM. Also the company Heesen Yachts Design Team and Omega Architects successfully collaborated on this project. Interior designer Omega Architects / Lovosovic / Owner was charged with the overall interior ambience. Created at Heesen Yachts the vessel was constructed within the Netherlands. She was successfully launched in Oss in 2008 before being transferred to the owner. A fairly large area is achieved with a widest beam (width) of 9 metres / 29.5 ft. With a 2.5m (8.2ft) draught (maximum depth) she is shallow. The material aluminium was used in the building of the hull of the motor yacht. Her superstructure above deck is fashioned with the use of aluminium.

Engineering & Speed For M/Y AGRAM:

The 16V 4000 M90 engine powering the yacht is made by MTU. AGRAM is propelled by twin screw propellers. The engine of the ship produces 3650 horse power (or 2721 kilowatts). She is fitted with 2 engines. The sum output for the yacht is therefore 7300 HP or 5443 KW. With respect to stabalisers she was supplied with At Anchor Systems 2 Fin Fixed.

Aboard Superyacht AGRAM She has The Following Passenger Accommodation Format:

Having cabins for a maximum of 10 visiting passengers sleeping aboard, the AGRAM accommodates everyone comfortably. Under normal conditions she uses around 9 professional crew members to manage.

A List of the Specifications of the AGRAM:

Superyacht Name:Motor Yacht AGRAM
Ex:(Project Klobuk Ii)
Built By:Heesen Yachts
Built in:Oss, Dutch
Launched in:2008
Length Overall:44 metres / 144.4 feet.
Waterline Length:36.3 (119.09 ft)
Naval Architecture:Heesen Yachts Design Team and Omega Architects, Heesen Yachts Design Team
Designers Involved in Yacht Design:Omega Architects
Interior Designers:Omega Architects / Lovosovic / Owner
Gross Tonnes:450
Hull / Superstructure Construction Material:aluminium / aluminium
Owner of AGRAM:Unknown
AGRAM available for luxury yacht charters:-
Is the yacht for sale:-
Helicopter Landing Pad:No
The Country the Yacht is Flagged in:Croatia
Official registry port is:Zadar
Class society used:ABS (American Bureau of Shipping)
Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code:Yes
Max yacht charter guests:10
Number of Crew Members:9
The propulsion comes from two 3650 Horse Power / 2721 kW MTU. Engine Model: 16V 4000 M90 diesel.
Giving the combined power of 7300 HP /5443 KW.
Cruise Speed: 20 nautical miles per hour.
Top Speed: 25 nautical miles per hour.
Range: 3400 at a speed of 20 knots.
Bunkering capacity: 69000 L.
Water: 16000.00.
Stabaliser Stabality devices: At Anchor Systems 2 Fin Fixed.
Beam: 9m/29.5ft.
Waterline Length (LWL): 36.3m/119.09ft.
Draught at deepest: 2.5m/8.2ft.
