A Summary of Motor Yacht ERMIS 2

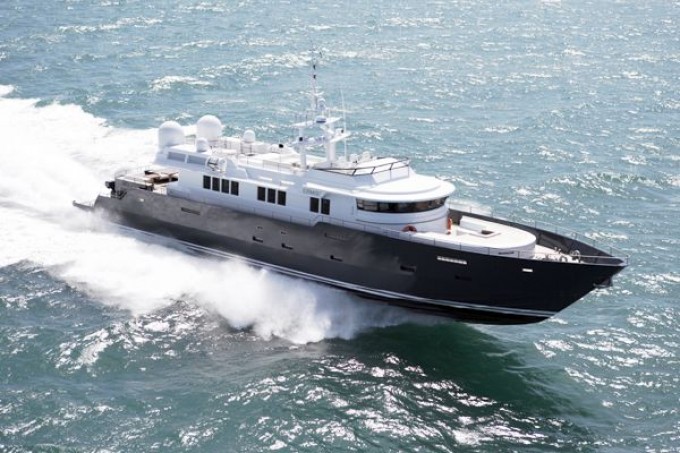

The motor yacht ERMIS 2 is a 38 metre 124 (ft) well proportioned composite ship which was manufactured at Mcmullen & Wing and conceived in the office of Humphreys Yacht Design. The naval architecture office that made the drawings for the yacht was Humphreys Yacht Design. The interior designing was the work of Mcmullen & Wing.

Motor yacht ERMIS 2 is a high speed yacht constructed using the VIP (Vacuum Infusion Process) in Carbon fibre to obtain an ultra lightweight construction able to withstand the extreme loadings of up to 2.2G while travelling up to 57 knots.

Construction & Yacht Design for Luxury Yacht ERMIS 2

Humphreys Yacht Design was the naval architect involved in the formal vessel plans for ERMIS 2. Her interior design was conceived by Mcmullen & Wing. Humphreys Yacht Design is also associated with the yacht general design work for this yacht. Built by Mcmullen & Wing the vessel was fabricated in the recognised yachting country New Zealand. She was officially launched in Auckland in 2007 before being transferred to the owner. A reasonable proportion is brought about with a maximum beam (width) of 6.4 m or 20.5 feet. With a 1.4m (4.59ft) draught (maximum depth) she is reasonably shallow. The material composite was used in the building of the hull of the motor yacht. Her superstructure over the hull is fashioned with the use of composite.

The Propulsion Type & Engine Room For M/Y ERMIS 2:

Powered by three MTU diesel main engines, ERMIS 2 is able to reach a high speed of 57 knots. Connected to her MTU engine(s) are tripple water jets (kamewa). She also has an economical range of 3500 nautical miles whilst underway at her cruising speed of 40 knots. Her total HP is 10950 HP and her total Kilowatts are 8250.

The Accommodation Capacity On Aboard Superyacht ERMIS 2:

The well sized luxury yacht M/Y ERMIS 2 is able to sleep a total of 8 passengers in addition to 4 crew members.

A List of the Specifications of the ERMIS 2:

Superyacht Name:Motor Yacht ERMIS 2
Built By:MCMULLEN & WING
Built in:Auckland, New Zealand
Launched in:2007
Length Overall:37.8 metres / 124.02 feet.
Waterline Length:30.15 (98.92 ft)
Naval Architecture:Humphreys Yacht Design, Humphreys Yacht Design
Interior Designers:Mcmullen & Wing
Displacement:97
Hull / Superstructure Construction Material:composite / composite
Owner of ERMIS 2:Unknown
ERMIS 2 available for luxury yacht charters:-
Is the yacht for sale:-
Helicopter Landing Pad:No
Class society used:GL (Germanischer Lloyd)
Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code:Yes
Max yacht charter guests:8
Number of Crew Members:4
The main engines are three 3650 Horse Power / 2750 kW MTU. The Model type is 16V 4000 M90 diesel.
Total engine power output 10950 HP /8250 KW.
Cruising at a speed of 40 nautical miles per hour.
Top Speed: 57 knots.
Approximate range: 3500 at a speed of 40 knots.
Bunkering capacity: 56000 L.
Water: 2000.00.
Generators: Northern Lights 2 times .
Beam: 6.4m/20.5ft.
Waterline Length (LWL): 30.15m/98.92ft.
Draught Maximum: 1.4m/4.59ft.
