Trinity Yachts has now announced that they have delivered their latest Bacarella superyacht to the new owner. The successful yacht delivery and acceptance of the 60 meter motor yacht Bacarella took place on the 1st of 2010. Superyacht Bacarella is a full displacement steel hulled yacht which is to be departing Florida and soon to be cruising in the Mediterranean for 2010 summer.
Superyacht Bacarella by Trinity Yachts 2010
Luxury Yacht Bacarella has an interior design which is contemporary as undertaken by Bannenberg & Rowell interior design. The interior was and fabricated by Metrica of Germany. The yacht offers six spacious staterooms, and features a touch and go helicopter capability, which is quite rare. She also has a tender garage, a passenger elevator and a range of 9,000 nautical miles at 10 knots.
Superyacht Bacarella - Interior design - Saloon
M/Y Bacarella marks the first delivery of the Trinity Yacht’s new 60m LOA, 10.8 meter beam, full displacement steel hull series.
More Specifications for Trinity Yachts Bacarella:

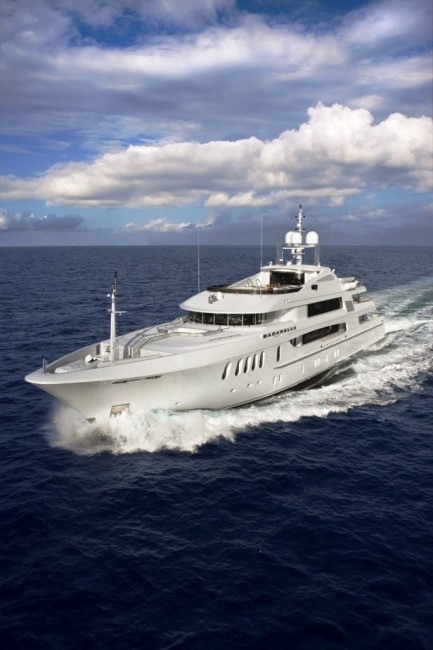

Superyacht Bacarella - Underway
Trinity Yachts Hull No. T040
Yacht Type: Tri-deck Motoryacht
Size: 196 ft. (60m)
Propulsion: 2x Caterpillar 3512B: 2,012hp each
Construction: Steel Hull and Aluminum Superstructure
Classification: ABS Maltese Cross A1 Yachting Service, AMS, MCA
Compliant
Naval Architect: Trinity Yachts, LLC
Interior Designer: Dickie Bannenburg
Full Specifications and Detailed information for superyacht Bacarella:
LOA 196′ (60.0 Metres)
LWL 177′ (54.0 Metres)
Beam (max) 35.5′ (10.82 Metres)
Draught (loaded) 11.5′ (3.5 Metres)
Construction Steel Displacement Hull with Aluminium Superstructure Above Main Deck.
Class & LY2 compliance ABS Maltese Cross A1 Commercial Yachting Service. Certified Compliant with the United
Kingdom Maritime & Coastguard Agency LY2, Large Commercial Yacht Code.
Displacement 1041.09 LT.
Gross Tonnage 1052.
Naval architect Trinity Yachts/Vripak.
Exterior stylist Bannenberg Designs Limited & Geoff Van Aller, Trinity Yachts.
Interior designer Bannenberg Designs Limited.
Builder’s project manager Stuart McClure, Trinity Yachts.
Owner’s project manager Capt. Simeon Lighten.
Main engines Two Caterpillar 3512B HD DITA SCAC Series II, 2012 BHP at 1600 RPM.
Gearbox Two Reintjes Model WAF 742, 3.9:1 Ratio.
Propellers/alternative propulsion Two Nibral ABS ISO Class “S,” 66”, 5-blade, fixed pitch Michigan Wheels.
Shafts Two (2) Aquamet 22 HS 150mm.
Steering gear Engine Monitor Inc.
Exhaust systems Soundown.
Speed (maximum/cruise) 16 Knots Max. / 14 Knots Cruise / 10 Knots Economical.
Fuel capacity 52,632 USG / 199,234 Liters.
Range at cruising speed 14 Knots 5,670 NM Range / 10 Knots 11,386 NM Range.
Fuel burnt at cruising speed (excl. generators) 14 Knots 100 GPH / 10 Knots 38 GPH.
Stabilizers Quantum QC 1800. Two stainless steel fins 5.0 sq. m. each “Zero Speed”.
Windlass Two Muir VWC 18,000.
Bow/stern thruster(s) Bowthruster 200 HP Quantum Marine Hydraulic QR-200. Sternthruster Quantum 75 HP with Stern Pilot.
Passarelle & bathing ladder One Marquipt 26 ft. / 7.93 Metres Passarelle. Two Hydraulic Side Boarding Ladders Marquipt.
Cranes One 6,000 lb. Overhead Beam Crane to Garage. Two 2,500 MCA Approved Telescoping Davits
installed Foredeck and 02 Deck.
Exterior paint Awlgrip Matterhorn White with Alwgrip Medium Gray Set-back Colours.
Water capacity 6,363 USG / 24 087 Litres.
Watermakers Two (2) FCI Model NWM4426S3 Neptune Series, 8,950 GPD / 33,880 Litres PD Total.
Sewage system Headhunter TW-300.
Electricity generation Two 250 KW Caterpillar C-9 with Kilopak Generators. One 99KW Kilopak Emergency Generator.
Shorepower converter Atlas 200 KVA.
Control and monitoring systems Palladium SIMON.
Fire control system Ultrafog Watermist Fire Suppression System. Concilium Salwico CS-4000 Fire Detection System.
Pipe and valve materials Seawater, Fire, Bilge Ballast Systems-CuNi 90-10. Watermist, Hydraulics-Stainless Steel. Potable Water, Chilled
Water – Profi-press Copper. Air Actuated Valves controlled by Palladium Vessel Monitoring and Alarm System.
Air conditioning manufacturer Dometic 90 Ton.
Climatic cruising capability All areas heated and cooled.
Satellite communications VSAT, Fleet Broadband 500 and 250.
Electronic charting system Transas NS 3100i.
Radar(s) Furuno FR 2137 SBB S-Band, Furuno FR 2127 BB X-Band.
GPS Two Northstar 6100I.
AIS Furuno FA150.
Autopilot C-Plath Navipilot 4000.
Gyrocompass C-Plath Navigat-X MKII.
Echosounder Furuno FCV 1200BB Colour.
Interior furniture manufacturer(s) Metrica Interiors Owner, Guest, Galley, Pilothouse and Public Spaces. Trinity Yachts Crew Areas.
Galley equipment Galley – Commercial Grade Vulcan 8-Burner Range, Ovens and Salamander Grille. Commercial Icemaker
Hoshizaki. Two Speed Oven/Microwaves Miele. Undercounter Drawer Freezer and Refrigerators Sub-Zero.
Two Dishwashers Miele.
Refrigeration Cospolich Walk-in Refrigerators and Freezers provided to Galley and Tank Deck.
Entertainment systems Central Audio Visual Rack Designed for Housing Distribution, Amplifiers, Satellite Receivers and Kaleidescape.
Crestron Controlled. Multi-standard Televisions provided throughout including Exterior Aft Main Deck,
Aft Pilothouse Deck and Enclosed 02 Deck Gymnasium.
Number of owner/guest cabins Owner King Stateroom on Main Deck. Five King Guest Staterooms on Lower Level Including Full Beam VIP.
Two of the Guest King Berths Split into Singles.
Number of crew cabins Seven Double Crew Cabins plus Queen Berth in Captain’s Cabin.
Tank testing Oceanic Consulting Corp.
Presence of special environmental technology and attention to anticipated legislation ABS issued “Statement of Voluntary Compliance” for MARPOL
Annex VI. ABS issued “Statement of Voluntary Compliance” for the IMO Anti-fouling Substances Convention.
Noise and vibration levels achieved Less than 42 dBA in Owner’s Stateroom.
Tenders One Zodiac CZ-7, 7M Inflatable w/ Two 4-Stroke 150 HP Outboard Engines. One Rescue Tender Zodiac RIBO-420.
Yacht Bacarella - Interior by Bannenberg & Rowell interior design
