The prestigious Dutch shipyard, Heesen Yachts, is thrilled to announce the sale of its motor yacht Project Galatea (YN 15640). Superyacht Project Galatea represents the first 40-metre Heesen ‘sportster’ – a yacht boasting advanced aluminium hull technology, powerful performance, uncompromising interior design, as well as peerless Dutch construction standards.

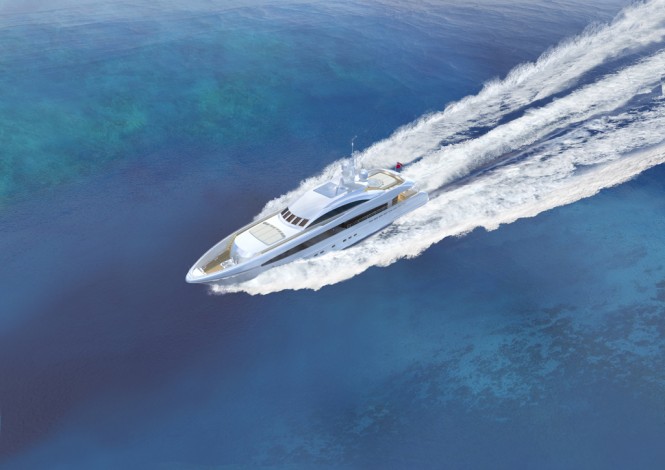

40m superyacht Project Galatea (YN 15640) by Heesen - Image credit to Heesen Yachts - Omega Architects
Luxury yacht Project Galatea has the optimum balance of power and comfort: Capable of 28 knots, yet boasts marble bathrooms among luxurious interior design features.

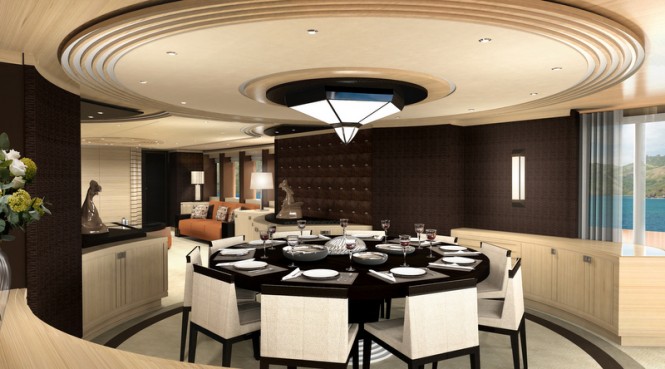

Project Galatea Yacht - Dining
Project Galatea yacht has an open flybridge layout with 85 square metres of deck space that includes a helm station and a shaded dining area that is protected even underway by glass side panels. (With the yacht built for private use, the sun deck was designed to have maximum space for relaxing and dining.)

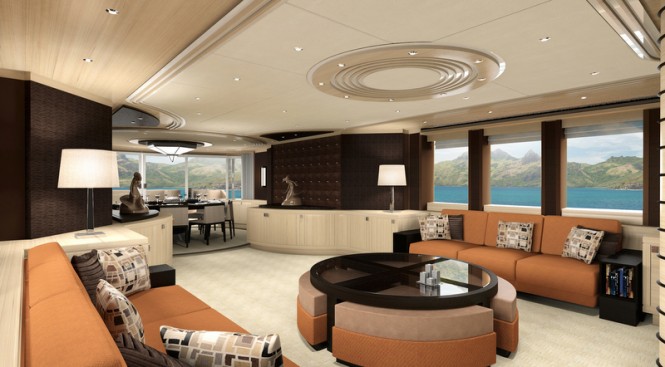

Luxury yacht Project Galatea - Saloon
The 10 metre long saloon includes a large square lounge and a dining area (aft) adjacent to full-height glazed doors. With the doors open, guests can dine inside while enjoying fresh air and panoramic views. Ten guests will sleep in five cabins: there’s a full-beam main deck master, two full-beam VIP doubles and two twin cabins on the lower deck, all of which have marble ensuite bathrooms.

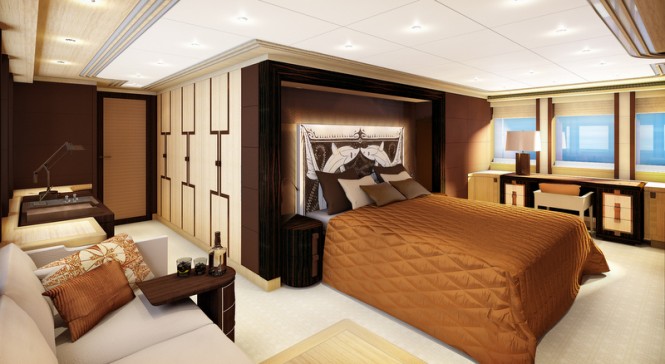

Motor yacht Project Galatea - Owners Stateroom
The ride will be luxurious too, comfort and handling are enhanced by Active Interceptor stabilizers and the very latest zero-speed Seakeeper gyro stabilizers.

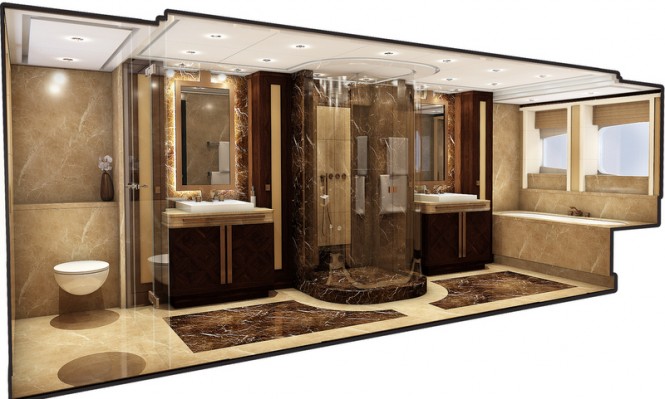

Project Galatea Yacht - Owners Bathroom
Frank Laupman of Omega Architects has created an interior design that has a distinctive personality based on a theme of Dutch expressionism. Contrasting woods, simple clean lines, marquetry and glass detailing create an atmosphere of calm, contemporary elegance.

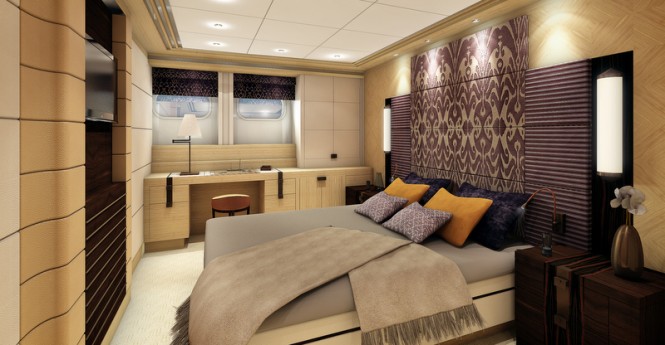

Superyacht Project Galatea - Guest Cabin
Currently under construction at the Heesen facility in Oss, superyacht Project Galatea will be launched in January 2014 and after intensive sea trials in the North Sea she will be delivered to her Owners at the end of March 2014.

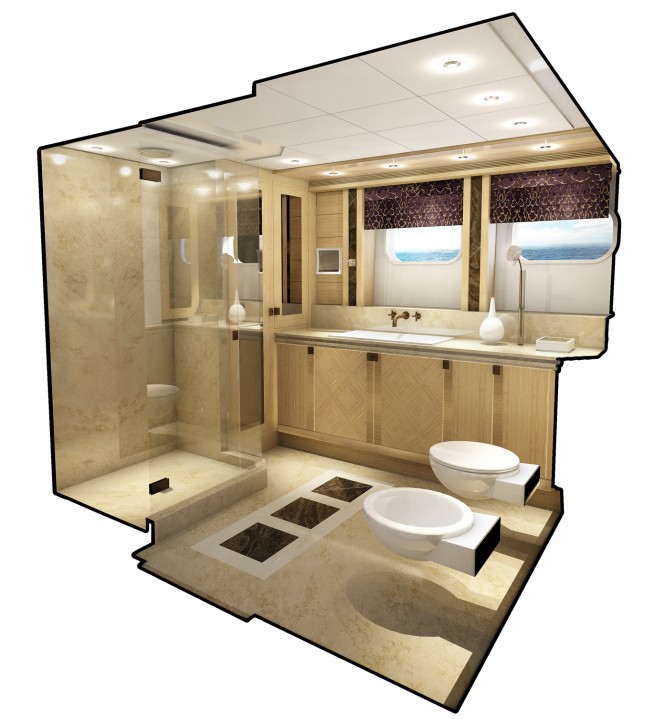

Project Galatea Yacht - Guest bathroom
Technical Specifications of the 40m superyacht Project Galatea (YN 15640)
Hull type: Twin propeller, hard chine, semi-displacement
Naval Architect: Van Oossanen / Heesen Yachts
Exterior Styling: Omega Architects
Interior Design: Omega Architects
Classification: ABS A1 Yachting Service AMS
Hull: Aluminium
Superstructure: Aluminium
ACCOMMODATION
Cabins: Full-beam master suite, two full-beam VIP cabins and two twin cabins
DIMENSIONS
Length over all: 40,00m / 131ft 3in
Beam over all: 8,00m / 26ft 3in
Draft: 2,35m / 7ft 8in
Displacement (50% load) approx. 203 tons
TECHNICAL DETAILS
Maximum speed (50% load): 27,5 knots
Range at 12 knots: 2.200Nm
Fuel capacity: 36.000 litres / 9.510 US gallons
Fresh water: 8.000 litres / 2.100 US gallons
PROPULSION DETAILS
Main engines: 2 x MTU 16V 4000 M73L
Maximum power: 2 x 2.880kW
Gearbox: 2 x ZF 9055A
Engine control: MTU Blue Vision
Propellers: Schaffran five blade fixed pitch ø 1.500mm
Generators: 2 x Kilo-Pak
Power: 2 x 50kW
Bowthruster: Hydromar 63kW, hydraulically driven
Steering system: Sperry Marine Systems
Stabilizers: Active Interceptor System + 2 Seakeeper gyro stabilizers zero-speed
