Responsible for both the exterior as well as the interior design, the prestigious UK design studio of Evan K Marshall is pleased to present its 56-metre Canoe Stern motor yacht concept, developed for the Italian shipyard, Rossinavi. The 56m Rossinavi Canoe Stern superyacht concept represents a beautiful displacement vessel, featuring classic sheerline, raked stem, skeg, canoe type stern, as well as two superstructure rows, out of which the first is “full beam” starting from about midships.
56m Rossinavi Canoe Stern Motor Yacht Concept designed by Evan K Marshall
The propulsion plant of the 56m Rossinavi Canoe Stern MY, fitted slightly abaft mid-ships, consists of 2 diesel engines, each one driving one single fixed pitch propeller via reverse/reduction gearboxes; one rudder to be mounted abaft each propeller.
56m Rossinavi Canoe Stern superyacht - Dining
56m Rossinavi Canoe Stern Luxury Yacht - Upper Lounge
Evan K Marshall designed 56m Rossinavi Canoe Stern Yacht Concept
The construction quality of the 56m Rossinavi Canoe Stern superyacht, both in terms of engineering and of interiors, is at the well known level, that the Buyer declares to know and accept, of the Builder’s Shipyard and already applied on similar and comparable Motor Yachts such as, for instance, luxury yacht “SOUTH” and superyacht “HIGH POWER III” (ex Numptia).
56m Rossinavi Canoe Stern MY - Master Stateroom
Master Stateroom aboard the 56m Rossinavi Canoe Stern yacht
Technical Specifications of the 56m Rossinavi Canoe Stern MY concept
• Length overall, Loa: 55,800m
• DWL length, Lwl: 49,500m
• Max moulded Breadth: 10,000m
• Moulded depth: 5,350m
• Scantling draft: 3,150m
• Main engines MCR @ 1.600 RPM: 2×1.044 kW (2×1.400 BHP)
• F.O. Double Bottoms & tanks cap.: 60,000m³
• Extra F.O. Double Bottoms & tanks cap.: 30,000m³
• F.W. Double Bottoms & tanks cap.: 25,000m³
• Sewage and grey water Double Bottoms & tanks cap.: 8,000m3
• Clean lube oil Double Bottom capacity: 2,000m3
• Polluted lube oil Double Bottom capacity: 2,000m3
• Cruising speed @ ½ load: 12,500Kts
• Range @ 11,5 kts (with extra-fuel): ~3.700Nm
• Range @ 10,5 kts (with extra-fuel): ~4.400Nm
• International tonnage: ~980GT
• Owner and Guests accommodation for: 12 persons
• Crew accommodation for: 8+2 persons

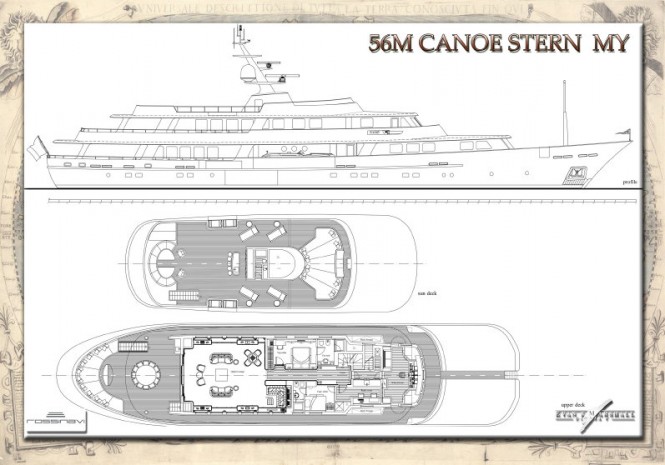

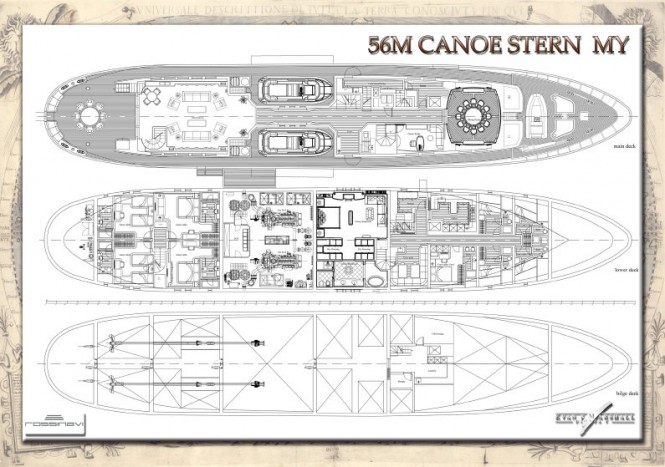

56m Rossinavi Canoe Stern Motor Yacht Concept - Layout
Evan K Marshall designed 56m Rossinavi Canoe Stern yacht concept
