Marine Results, specialising in the inspection and rigging of grand prix yachts and superyachts, have undertaken a rigging of a very unique project: a 65m Traditionally Styled Wooden Phinisi Yacht LAMIMA. Superyacht LAMIMA is an Indonesian sailing ketch constructed on the beach in Bira, in the island of Sulawesi in Indonesia. She was then towed to Italthai Marine in Bangkok for outfitting.

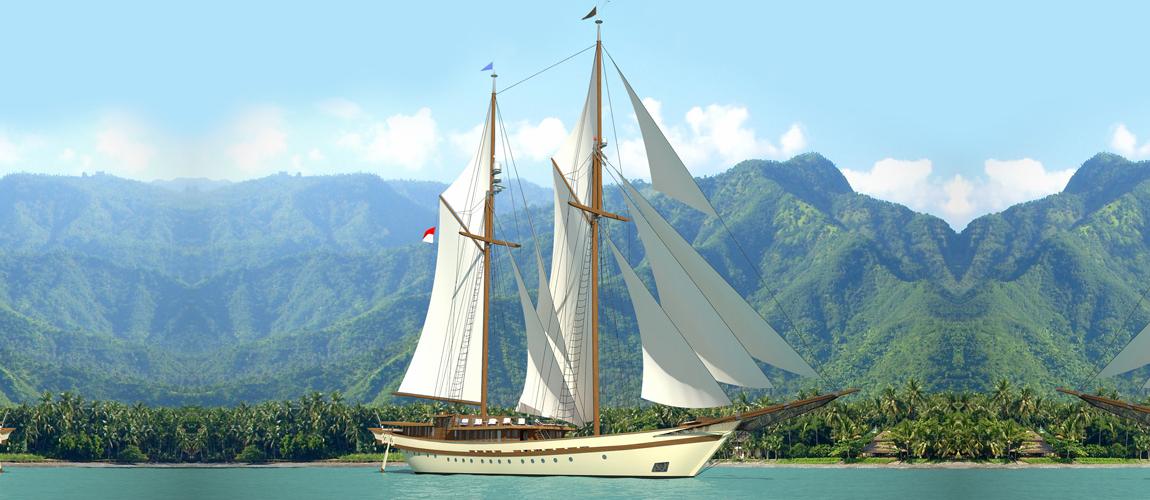

Luxury Sailing Phinisi Yacht LAMIMA
Despite her traditional specification sailing yacht Lamima is to be operated by a luxury cruise company, offering exotic itineraries to 14 discerning passengers, with a high standard of on board comfort and cuisine.
Main Deck rendering - Superyacht LAMIMA
Marine Results is working with naval architects and the build team to specify and manufacture the standing and running rigging. Much of the bespoke rigging package is being completed onsite, with wire brought in from China and fittings from Europe.
Rendering of the main deck - Super Yacht LAMIMA
The team is being led by Ben Wood who explains “Marine Results is handling the management of virtually every aspect from the deck up. We have been responsible for all the mast hardware design and we contracted Fairlie Yachts for their invaluable input into the traditional design. We are now managing the onsite spar and mast hardware assembly and ultimately the rigging and stepping.” He adds “We have supplied 4.4 kilometres of rope and approximately one tonne of blocks, shackles and running rigging hardware.”
LAMIMA yacht - Main deck rendering
Three Marine Results specialists are on site with the local workforce, as well as other European companies who have been drafted into the project. The wooden masts were built in Spain of fast growing sustainable hemlock.
Suffolk Composite Structures are working with Marine Results on component designs including chainplates.
LAMIMA Phinisi Yacht - Saloon
“We will be stepping the rig ashore in early October,” says Ben “which is unusual, as we normally step with the vessel in the water. This whole project has involved using an extremely diverse range of specialist skills to produce and rig these traditional-style wooden spars.”
LAMIMA Yacht - Master Stateroom Rendering
Lamima superyacht will be the largest sailing phinisi in existence when she is completed in October. Her main mast and topmast measures 50 metres overall while the mizzen mast and topmast is 48 metres. The entire rigging package weighs in at about 22 tonnes.
LAMIMA Yacht - Twin Bathroom Rendering
65m Phinisi Superyacht LAMIMA Specifications:
TYPE Ketch
YEAR BUILT 2013
CUSTOM BUILT BY Haji Baso and Haji Saka
CLASSIFICATION * RINA and LY2 compliant
ARCHITECT AND DESIGN Marcelo Pena Yacht Design
HULL CONSTRUCTION Iron Wood
LENGTH OVERALL 65.2 m
DECK Teak
BEAM 11.20 m
SUPERSTRUCTURE Teak
DRAFT 3.70 m
GUESTS 14 guests – 1 double master cabin (ensuite & dressing room) 4 double cabins (ensuite) 2 twin cabins (ensuite)
RIGGING Marine Result, United Kingdom
CREW 19
SAILS North Sails 1277 M²
FLAG Indonesian
MAIN ENGINE Man 1000 hp/735 kW
FUEL CAPACITY 45 000 L
GENERATORS Kohler 3 x 50 kW, 1 x 25 kW
FRESH WATER TANK CAPACITY 12 000 L, 2 water makers producing 12 000L/day
MAX SPEED 12 Knots
WASTE TREATMENT Hamann mini compact system
CRUISING SPEED 10 Knots
INTERNET Vsat + Wifi
