The revolutionary new 135-metre High Performance Axe Bow Yacht Concept has been proudly unveiled by T. Fotiadis. The first project out of the series, the striking 135m Fotiadis High Performance Mega Yacht Concept represents the evolution of a design study, introduced by Fotiadis back in 2012.

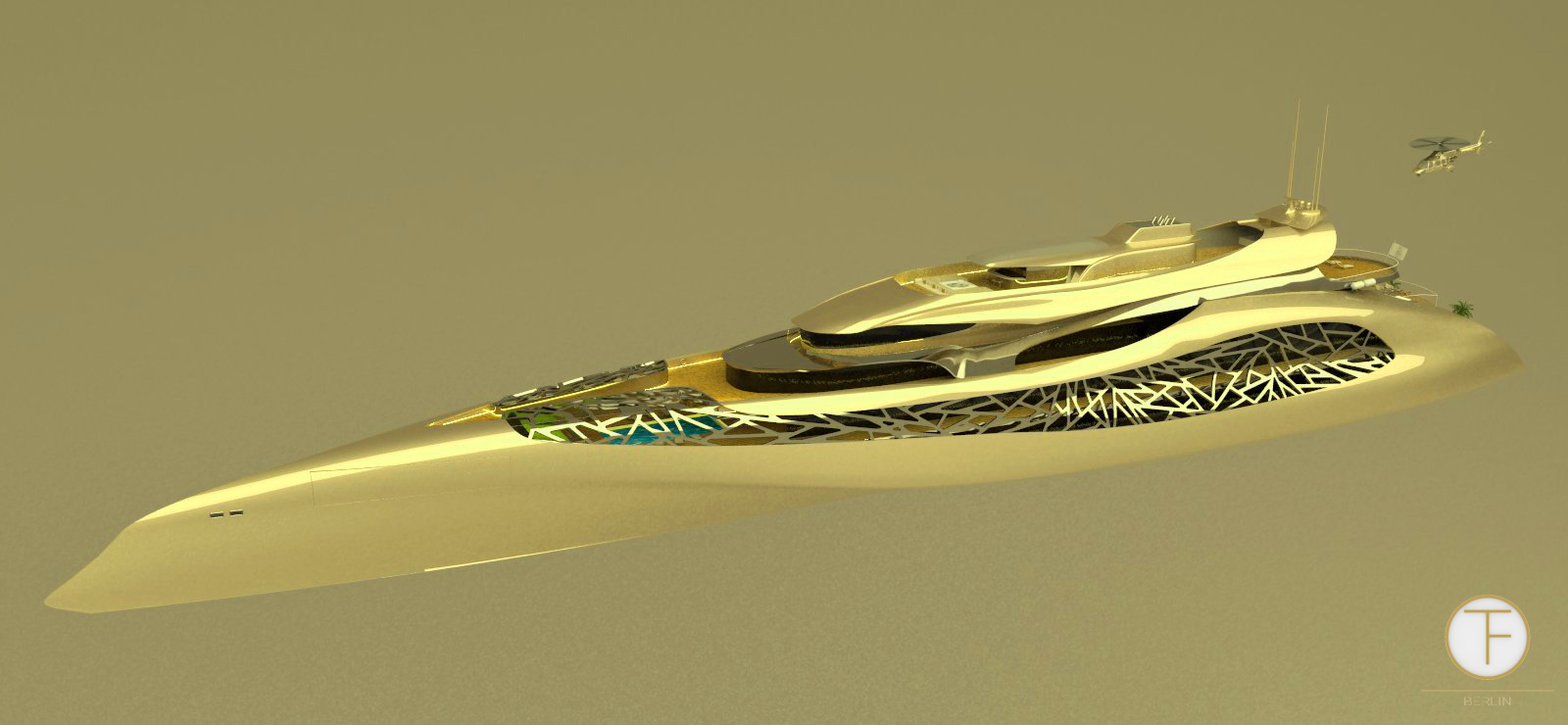

New 135m Axe Bow High Perfomance Mega Yacht Concept by T. Fotiadis
The 135m Fotiadis High Performance superyacht concept is conceived to create a steer in and out of the water. Both magnificent and seaworthy; all while utilizing energy and eco-friendly ideologies for this one of the first in a line of sustainable and superior vessels. The Hull is designed to achieve top speeds estimated at 40-45 knots.
On one hand speed and sportive appearance, on the other hand luxurious owner’s and guest are quarters with well protected outdoor areas. The unique exterior styling completes an unrivaled yacht design form.
With upwards of 23,500 horsepower on tap, the 135m Fotiadis High Performance luxury yacht concept can reach speeds up to 45 knots with four extremely powerful MTU engines coupled to two steerable Rolls Royce water jets and two gas turbines also coupled to two further Rolls Royce water jet boosters. At the maximum speed of 45 knots the 135-meter Axe Bow beast can leap from Monaco to Mykonos within only one single day.

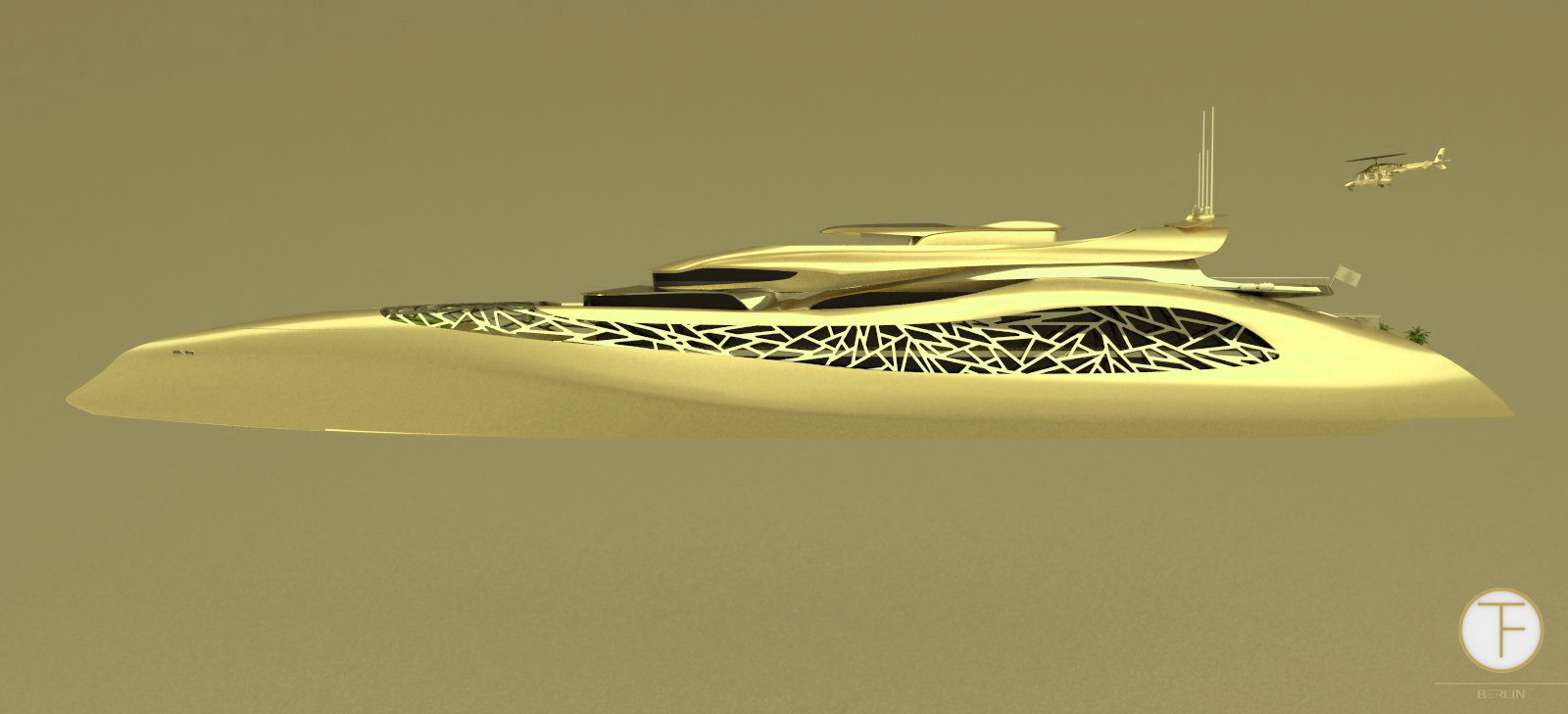

135m Fotiadis Axe Bow High Perfomance Superyacht Concept
The internal layout is based on an efficient usage of space. Top sides hug the superstructure in a seamless way while lines and curves stretch from bow towards aft. While the voronoi pattern ensures a rigid hull, it creates alfresco areas also on the lower decks. The Owner’s 320 sq. completes the private deck at level four, consisting of a large state room facing the aft. Privacy is given a priority, thus owners premises are not accessible by guests, At the same deck to the aft we have the Helipad for timely arrival or departure for the owner, while utilizing neighboring space for use as an exterior lounge area comprised of a Jacuzzi, alfresco salon and open air cinema. Guest suites are located on the third decks as well as on the beach club. An office with a reception and waiting area are located close to the main staircase.
The entire Upper Deck, level five, offers common and entertaining areas for the Owner and his Guests with a spacious lounge having access to the forward deck where a Jacuzzi have been placed as well as a flip out 180 inches flip out LED screen.

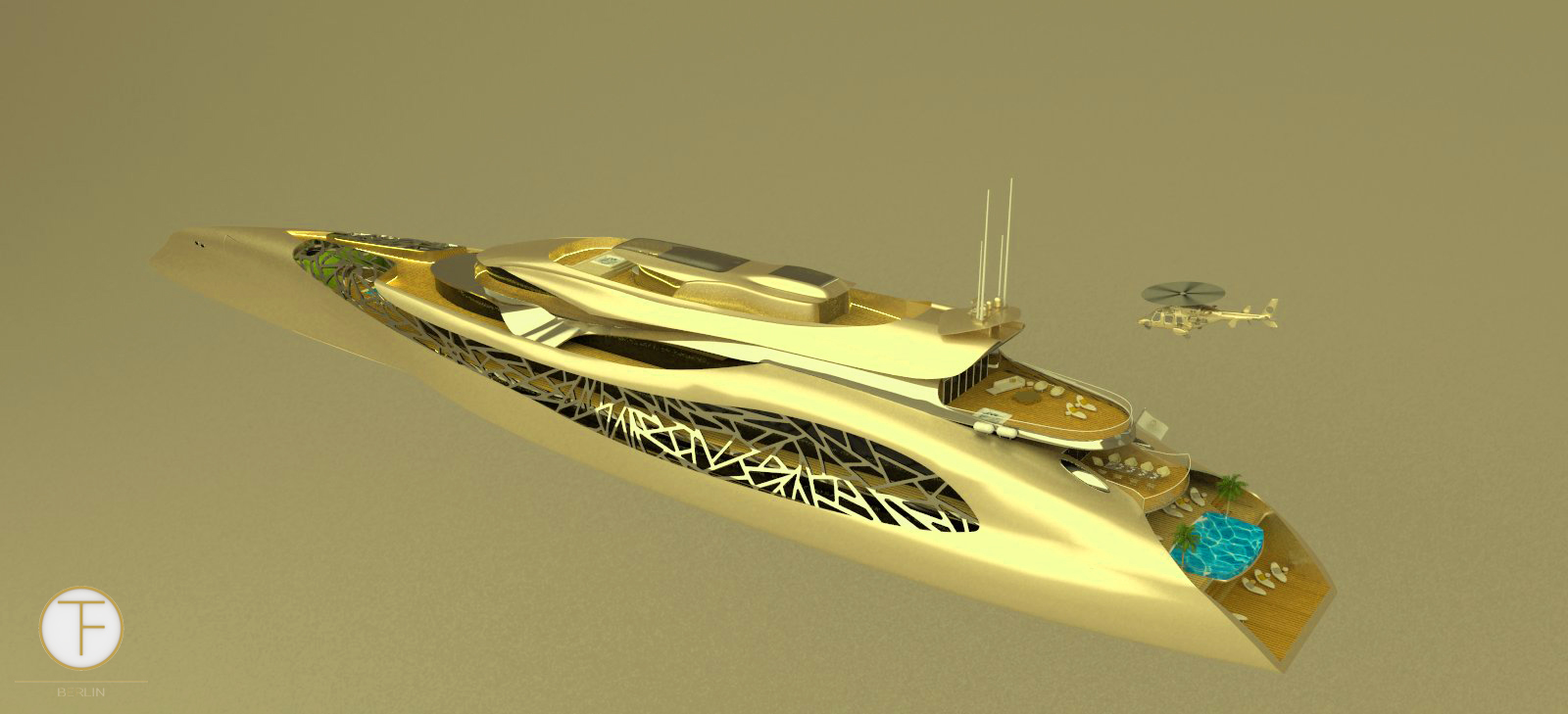

135m Fotiadis Axe Bow High Perfomance Motor Yacht Concept
Alfresco dining on the third deck and there is also to be found a library.
10 comfortable Guest cabins accommodating 16 Guests are well located together one deck below on Main deck and 4 guests on the port and starboard side on the beach club level. The tender garages are located on the bow and aft with side gull wing doors and can accommodate a personal submarine, recreational expandable island and a 8m (26 ft.) tender as well as various water toys. A gym with access to the beach club, which is providing supreme privacy and offers protection from the elements while sunbathing.
Technical Specifications of the 135m Fotiadis High Performance Yacht Concept
Length: 135.0m (442 ft.)
Max Beam: 20.1m (66 ft)
Draft: 4.3m (14.1 ft)
Max. Speed: + 45.0 kn
Cruising speed: 22.0 kn
Range: 1050nm @ 45 kn
Range: 3,500nm @ 21 kn
Fuel: 680t
Fresh water: 90t
Propulsion (main): 4x 5875 PS MTU diesels coupled to steer able Rolls Royce water jets.
Propulsion (aux): 2x 32000 PS Gas Turbines coupled to Rolls Royce water jets.
Generator: 2 x 870 kW diesel
Maneuvering: 1x 500 kW bow thruster
Passengers: Owner: 2
Guests: 20
Crew: 40
