Info Page for Motor Yacht RADIAL by Astilleros Zamacona SA


A Summary of Motor Yacht RADIAL

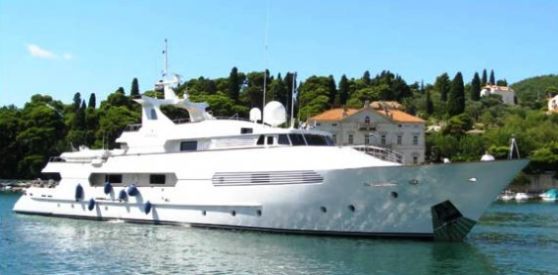

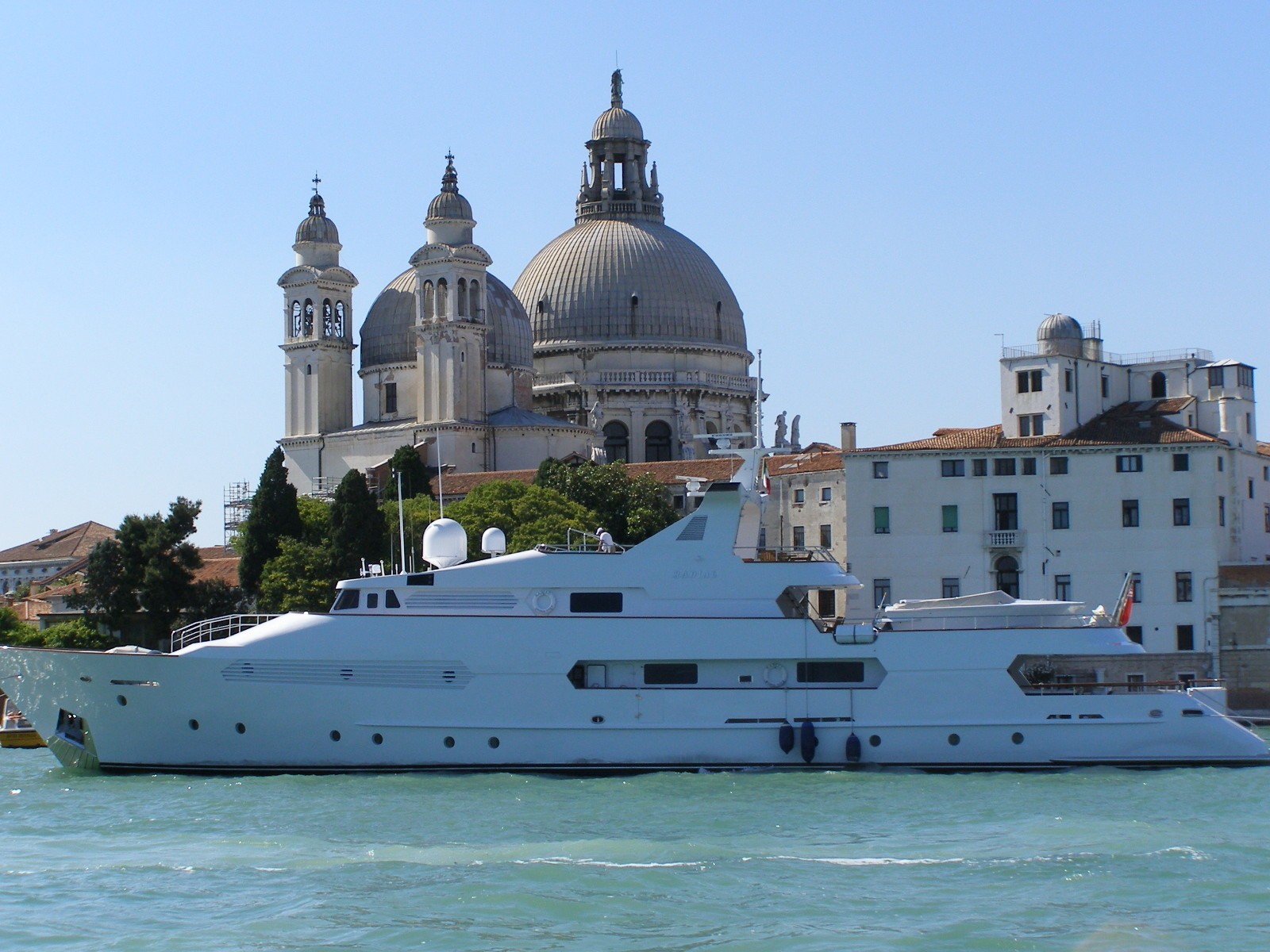

The motor yacht RADIAL is a 48 metre 157 (ft) large steel luxury yacht which was built at Astilleros Zamacona and conceived by Nick Myers. Accommodating 10 guests and 9 crew, motor yacht RADIAL used to be Alphee; Beluga which was her project name and/or yacht title. Finished and launched in 1985 this boat’s internal styling proffers the traditional approach in the designing of Claude M Coty.

Build & Designing of Luxury Yacht RADIAL

Nick Myers was the naval architect involved in the formal nautical design work for RADIAL. Her interior design was realised by Claude M Coty. Nick Myers is also associated with the yacht general design work for this yacht. Created at Astilleros Zamacona this yacht was built in the recognised yachting country Spain. She was officially launched in Bilbao in 1985 before being delivered to the owner. The hull was crafted from steel. The motor yacht main superstructure is fabricated for the most part from aluminium. With a width of 8.11 m or 26.6 feet RADIAL has spacious interior. She has a reasonably deep draught of 3m (9.8ft). She had refit improvement and modification undertaken in 2008.

M/Y RADIAL Engine Room And Speed:

Powered by twin CATERPILLAR diesel main engines, RADIAL is able to reach a top speed of 15 knots. Coupled to the RADIAL engines are twin screw propellers. She also has an economical range of 4000 nautical miles when sailing at her cruise speed of 14 knots. Her total HP is 2600 HP and her total Kilowatts are 1913. With respect to the ship’s stabalisers she uses Vosper.

The Guest Accommodation Aboard Superyacht RADIAL:

The capacious luxury yacht M/Y RADIAL is able to sleep as many as 10 people in addition to 9 professional crew.

A List of the Specifications of the RADIAL:

Superyacht Name: Motor Yacht RADIAL Ex: Alphee; Beluga - Built By: Astilleros Zamacona S.A. - Built in: Bilbao, Spanish - Launched in: 1985 - Refitted in: 2008 - Length Overall: 47.98 metres / 157.4 feet - Waterline Length: 42.8 (140.4 ft)

Naval Architecture: Nick Myers, Nick Myers - Designers Involved in Yacht Design: - Interior Designers: Claude M Coty - Gross Tonnes: 425 - Nett Tonnes: - Displacement: 275 - Hull / Superstructure Construction Material: steel / aluminium - Owner of RADIAL: - Cost To Build: - RADIAL available for luxury yacht charters: - Is the yacht for sale: - Helicopter Landing Pad: No - Swimming Pool: - Spa: - Material Used For Deck: teak

The Country the Yacht is Flagged in: Cayman Islands - The official registry port is George Town and her home port is Genoa, Italy - Class society used: LR (Lloyds Register) - Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code: - Max yacht charter guests 10 - Guest’s cabins: - Guests Cabin configuration: - Maximum Number of Guests Whilst Underway: - Number of Crew Members: 9

The propulsion comes from two 1300 HP / 957 Kilowatts Caterpillar. Model: 3512 DITA diesel. - Overall output: 2600 HP /1913 KW. - Cruising at a speed of 14 knots. - Her top Speed is around 15 nautical miles per hour. - Bunkering capacity: 60000 L. - Water: 10000.00. - Stabalisers: Vosper. - Yacht Beam: 8.11m/26.6ft. - Waterline Length (LWL): 42.8m/140.4ft. - Draught at deepest: 3m/9.8ft.

Miscellaneous Yacht Details

Her deck material is predominantly a teak deck.
