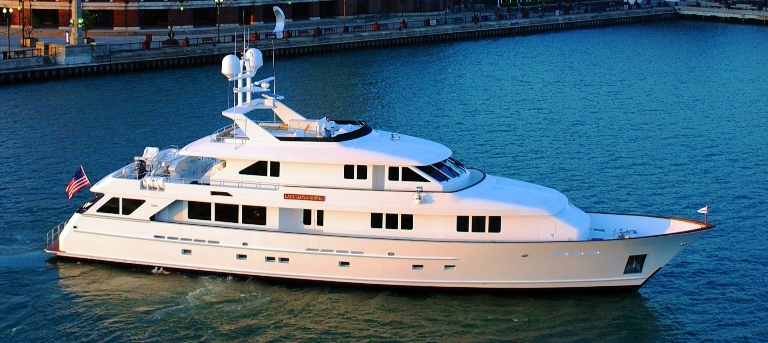

LADY GAYLE MARIE - Photo Courtesy of Burger Boat Company

A Summary of Motor Yacht LADY GAYLE MARIE

The motor yacht LADY GAYLE MARIE is a superyacht of good sized proportions. This 37 metre (122 foot) luxury yacht was built at Burger Boats in 2002. LADY GAYLE MARIE was once called the project or yacht name 493c; Lady Grace Marie. Superyacht LADY GAYLE MARIE is a superb yacht that is able to sleep up to 10 people on board and has around 7 professional crew. The firm of naval architecture that made her design details on this ship was Don O'keeffe. Douglas Richey / Owner / Dee Robinson in addition was responsible for her interior design.

LADY GAYLE MARIE ex LADY GRACE MARIE is an original owner custom Burger Tri-Deck motor yacht. She offers a full beam master stateroom on the main deck with four guest staterooms on the lower deck plus 4 crew cabins. The vessel features walk-around side decks and plenty of outside deck space.

The Construction & Naval Architecture with respect to Luxury Yacht LADY GAYLE MARIE

The yacht's wider design collaboration came from Don O'keeffe. The technical naval architecture intellectual property are the creation of Don O'keeffe. Motor Yacht LADY GAYLE MARIE received her stylish interior designing from the interior design firm of Douglas Richey / Owner / Dee Robinson. Created at Burger Boats the yacht was built in the country of the United States. She was officially launched in Manitowoc Wi in 2002 before being transferred to the owner. The core hull was crafted from aluminium. The motor yacht superstructure component is made mostly from aluminium. With a beam of 7.92 metres / 26.5 feet LADY GAYLE MARIE has reasonable interior. She has a fairly shallow draught of 1.83m (6ft).

M/Y LADY GAYLE MARIE Engineering & Speeds:

The yacht harnesses the power of two robust MTU main engine(s) and can drive at a exalting maximum speed of around 25 knots. The engine of the yacht generates 2735 horse power (or 2040 kilowatts). Her total HP is 5470 HP and her total Kilowatts are 4080. Her propulsion units are twin screw propellers. For stabalisers she was built with Naiad. With respect to bow thruster maneuverability she was built with Quantum. LADY GAYLE MARIE has a/an animated cruising speed is 20 knots which gives a range of 2500.

Superyacht LADY GAYLE MARIE Has The Following Accommodations:

With chambers for a limit of 10 welcome guests spending the night, the LADY GAYLE MARIE accommodates everyone in luxury. Normally the vessel carries around 7 proficient crewmembers to maintain and sail.

A List of the Specifications of the LADY GAYLE MARIE:

Superyacht Name: Motor Yacht LADY GAYLE MARIE Ex: 493c; Lady Grace Marie - Built By: Burger Boat Company - Built in: Manitowoc Wi, United States - Launched in: 2002 - Refitted in: - Length Overall: 37.2 metres / 122 feet - Waterline Length: 32.15 (105.5 ft)

Naval Architecture: Don O'keeffe, Don O'keeffe - Designers Involved in Yacht Design: - Interior Designers: Douglas Richey / Owner / Dee Robinson - Gross Tonnes: 277 - Nett Tonnes: 212 - Displacement: 215 - Hull / Superstructure Construction Material: aluminium / aluminium - Owner of LADY GAYLE MARIE: - Cost To Build: - LADY GAYLE MARIE available for luxury yacht charters: - Is the yacht for sale: - Helicopter Landing Pad: No - Swimming Pool: - Jacuzzi Spa: - Material Used For Deck: teak

The Country the Yacht is Flagged in: United States - The official registry port is New Orleans La and her home port is New Orleans La, USA - Class society used: - Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code: - Max yacht charter guests 10 - Guest’s cabins: - Guests Cabin configuration: - Maximum Number of Guests Whilst Underway: - Number of Crew Members: 7

The main engines are two 2735 Horse Power or 2040 Kilowatts MTU. Engine Model: 12V 4000 M90 diesel. - Overall output: 5470 HP /4080 KW. - Approximate Cruise Speed is 20 knots. - Top Speed: 25 nautical miles per hour. - Approximate range: 2500 at a speed of 20 knots. - Fuel Capacity: 50113 L. - Potable water capacity: 6810.00. - Gensets: Kilo-Pak 2 times 60 kilowatts. - Stabaliser Stabality devices: Naiad. - Thrusters: Quantum. - Air Conditioning: Marine Air. - Yacht Beam: 7.92m/26.5ft. - Waterline Length (LWL): 32.15m/105.5ft. - Draught at deepest: 1.83m/6ft.

Further Information On The Yacht

The yacht was supplied with Marine Air air conditioning system. LADY GAYLE MARIE features a teak deck.
