Info Page for Motor Yacht GIANT I by Ihc Verschure

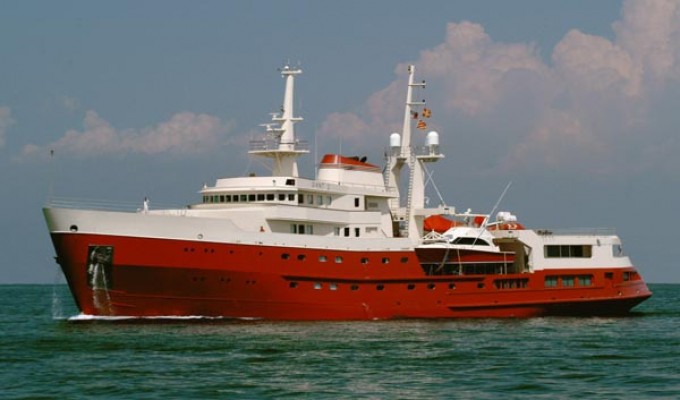

GIANT I Side-680

A General Description of Motor Yacht GIANT I

This motor yacht GIANT I is a 75 metre 247 (foot) significant steel superyacht which was fashioned by Ihc Verschure Bv and devised by Ihc and Me Consulting. The impressive explorer style (expedition) yacht GIANT I is a very well designed Dutch built superyacht which was launched to celebration in 1974. Sleeping 24 passengers and 30 qualified crew, motor yacht GIANT I was previously called Dimant; Gigant. The naval architecture office responsible for the plans and general arrangement in respect of the yacht is Ihc and Me Consulting. The interior designing is the work of John Misiag Interior Design. She could be described as a older explorer style (expedition) yacht.

GIANT I has undergone and extraordinary refit which has seen her converted from an ordinary working tug into a luxurious expedition yacht filled with quality fittings and luxurious decor which make her a true superyacht. With superb seagoing qualities and icebreaking capabilities, there’s virtually nowhere this exceptional superyacht cannot go. There are very few other yachts capable of matching the versatility and capacity of GIANT I. Naval Architect ME Consulting Interior Millwork Juan Ruiz, Mexico Interior Design John Misiag, USA Interior Decorator Shelley McNaughton, USA Wood Floors & Teak Decks Teak Decking, USA Final Wood Finish & Interior Competion Genesis, Italy

The Building & Design for Luxury Yacht GIANT I

Ihc was the naval architecture company involved in the formal nautical composition for GIANT I. Her interior design was completed by John Misiag Interior Design. Ihc and Me Consulting is also associated with the yacht wider design collaboration for this yacht. In 1974 she was actually launched to accolade in Amsterdam and following sea trials and detailing was thereafter passed on to the owner who commissioned her. Ihc Verschure Bv completed their new build motor yacht in the Netherlands. A open proportion is achieved with a maximum beam (width) of 13.5 metres / 44.3 feet. With a 6.4m (21ft) draught (maximum depth) she is reasonably 6.4 (21 ft). The material steel was used in the building of the hull of the motor yacht. Her superstructure above deck is fashioned from steel. In 2007 further refit work and updating was additionally performed.

Propulsion Type - Engine Room For M/Y GIANT I:

Installed with two SMIT-BOLNES diesel engines, GIANT I is able to reach a maximum speed of 18 knots. Her propulsion units are twin screw propellers. She also has an efficient range of 16000 nautical miles whilst underway at her cruise speed of 15 knots. Her total HP is 6800 HP and her total Kilowatts are 5004. With respect to the ship’s stabalisers she was built with Denny Brown.

Accommodation Capacity Provided by Superyacht GIANT I:

The prominent luxury yacht motor yacht GIANT I is able to sleep up to 24 guests and 30 professional crew.

A List of the Specifications of the GIANT I:

Superyacht Name: Motor Yacht GIANT I Ex: Dimant; Gigant - Built By: IHC Verschure B.V. - Built in: Amsterdam, Dutch - Launched in: 1974 - Refitted in: 2007 - Length Overall: 75.4 metres / 247.4 feet - Waterline Length: 65 (213.3 ft)

Naval Architecture: Ihc and Me Consulting, Ihc - Designers Involved in Yacht Design: Me Consulting - Interior Designers: John Misiag Interior Design - Gross Tonnes: 2290 - Nett Tonnes: - Displacement: 2290 - Hull / Superstructure Construction Material: steel / steel - Owner of GIANT I: - Cost To Build: - GIANT I available for luxury yacht charters: - Is the yacht for sale: - Helicopter Landing Pad: No - Swimming Pool: - Spa: - Material Used For Deck: teak

The Country the Yacht is Flagged in: Panama - The official registry port is Panama and her home port is Monaco, France - Class society used: BV (Bureau Veritas)/(RS (Russian Maritime Register)) - Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code: - Max yacht charter guests 24 - Guests cabins: - Guests Cabin configuration: - Maximum Number of Guests Whilst Underway: - Number of Crew Members: 30

The propulsion comes from two 3400 HP or 2502 kW Smit-Bolnes. The Model type is 308HDK diesel. - Total engine power output 6800 HP /5004 KW. - Cruise Speed: 15 knots. - Top Speed: 18 nautical miles per hour. - Approximate range: 16000 at a speed of 16 knots. - Bunkering capacity: 466000 L. - Fresh water: 185000.00. - Generators: Smit-Bolnes 3 times 675 kilowatts, Caterpillar 1 times 200 kilowatts. - Stabalisers: Denny Brown. - Beam: 13.5m/44.3ft. - Waterline Length (LWL): 65m/213.3ft. - Draught Maximum: 6.4m/21ft. Yacht Type: explorer style (expedition) yacht.

Miscellaneous Yacht Details

She has a teak deck.
