Info Page for Motor Yacht DOUBLE HAVEN by Feadship

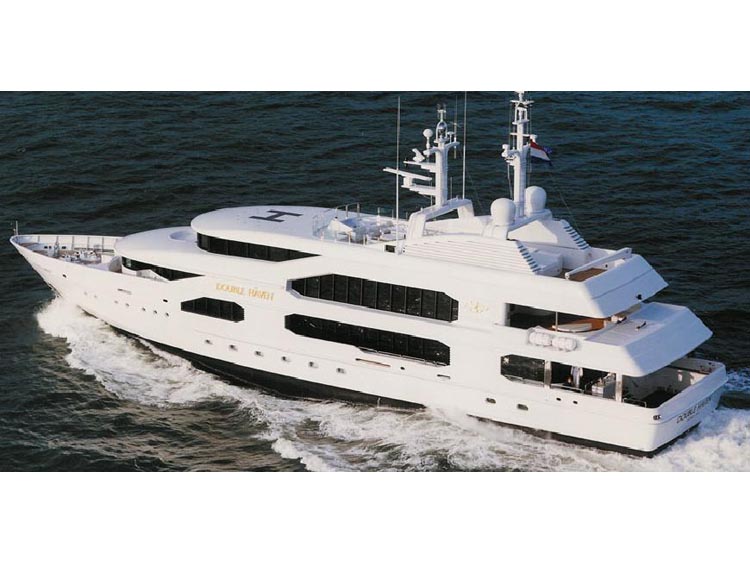

Yacht DOUBLE HAVEN - Image by Feadship

A General Description of Motor Yacht DOUBLE HAVEN

This motor yacht DOUBLE HAVEN is a 51 metre 167 (ft) impressive steel ship which was completely constructed by The Feadship De Vries Shipyard and conceived from the design board of De Voogt Naval Architects and Richard Hein and Glade Johnson and Gerhard Gilgenast. The naval architecture office whom authored her design work on this ship was De Voogt Naval Architects and Richard Hein and Glade Johnson and Gerhard Gilgenast. In addition, the interior design is the work of Glade Johnson.

New Build & Yacht Design for Luxury Yacht DOUBLE HAVEN

De Voogt Naval Architects was the naval architect involved in the technical nautical design work for DOUBLE HAVEN. Her interior design was completed by Glade Johnson. De Voogt Naval Architects and Richard Hein and Glade Johnson and Gerhard Gilgenast is also associated with the yacht general design work for this boat. In 1993 she was actually launched with triumph in Aalsmeer and post sea trials and finishing touches was thereafter delivered to the owner. The Feadship De Vries Shipyard completed their new build motor yacht in the Netherlands. A spacious proportion is brought about with a total beam (width) of 9.3 metres or 30.5 ft. With a 3.2m (10.5ft) draught (maximum depth) she is fairly deep. The material steel was used in the building of the hull of the motor yacht. Her superstructure over the hull is built out of aluminium. In 2001 further refit work and modernisation was additionally finished.

Range & Speeds & Engineering Figures For M/Y DOUBLE HAVEN:

Installed with two CATERPILLAR diesel main engines, DOUBLE HAVEN will reach a top speed of 16 knots. DOUBLE HAVEN is propelled by twin screw propellers. She also has an economical range of 7644 miles whilst motoring at her cruising speed of 14 knots. Her total HP is 2860 HP and her total Kilowatts are 2104. For stabalisers she was supplied with Vosper.

Accommodation Capacity On Aboard Superyacht DOUBLE HAVEN:

The large luxury yacht M/Y DOUBLE HAVEN can sleep as many as 8 guests in addition to 11 qualified crew.

A List of the Specifications of the DOUBLE HAVEN:

Superyacht Name: Motor Yacht DOUBLE HAVEN Ex: - Built By: Feadship - de Vries Scheepsbouw - Built in: Aalsmeer, Dutch - Launched in: 1993 - Refitted in: 2001 - Length Overall: 51 metres / 167.3 feet - Waterline Length: 45.5 (149.3 ft)

Naval Architecture: De Voogt Naval Architects and Richard Hein and Glade Johnson and Gerhard Gilgenast, De Voogt Naval Architects - Designers Involved in Yacht Design: Richard Hein - Interior Designers: Glade Johnson - Gross Tonnes: 817 - Nett Tonnes: 245 - Displacement: 773 - Hull / Superstructure Construction Material: steel / aluminium - Owner of DOUBLE HAVEN: - Cost To Build: - DOUBLE HAVEN available for luxury yacht charters: - Is the yacht for sale: - Helicopter Landing Pad: No - Swimming Pool: - Spa: - Material Used For Deck: teak

The Country the Yacht is Flagged in: Cayman Islands - The official registry port is George Town and her home port is Hong Kong, Hong Kong - Class society used: LR (Lloyds Register) - Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code: - Max yacht charter guests 8 - Guest’s cabins: - Guests Cabin configuration: - Maximum Number of Guests Whilst Underway: - Number of Crew Members: 11

The main engines are two 1430 HP or 1052 kW Caterpillar. Engine Model: 3512 DITA diesel. - Overall output: 2860 HP /2104 KW. - Cruising at a speed of 14 knots. - Top Speed: 16 nautical miles per hour. - Range: 7644 at a speed of 12 knots. - Fuel Capacity: 128500 L. - Fresh water: 37700.00. - Generators: Northern Lights 3 times 125 kilowatts. - Stabaliser Stabality devices: Vosper. - A/C: Heinen & Hopman. - Beam: 9.3m/30.5ft. - Waterline Length (LWL): 45.5m/149.3ft. - Draught at deepest: 3.2m/10.5ft.

Further Information On The Yacht

Heinen & Hopman was the outfit which made the air-con in this yacht. She has a teak deck.
