Info Page for Motor Yacht CONSTELLATION by OceAnco

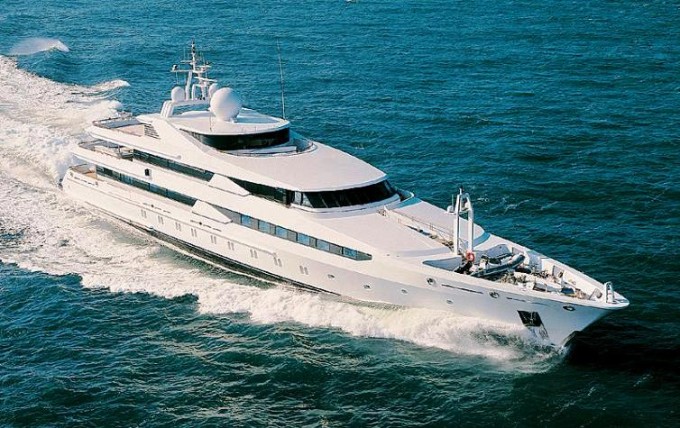

Constellation 80m - Photo Credit Oceano

A Summary of Motor Yacht CONSTELLATION
The motor yacht CONSTELLATION is a superyacht of huge proportions. This 80 metre (263 foot) luxury yacht was a new build that was completed by at Oceanco Yachts (Alblasserdam Yachtbuilding) in 1999. CONSTELLATION used to be the project or yacht name (Project Stargate I). She could be considered a modern full displacement yacht. Superyacht CONSTELLATION is a well designed yacht that is able to sleep as many as 19 people on board and has approximately 22 crew. The naval architecture office that made the plans and general arangement for the yacht is Oceanco. The A Group was the one who saw out the overall interior design.

The owner of CONNSTELLATION, who is an experienced yachtsmen and charterer had a very clear idea of what he required in terms of performance, soundproofing, seaworthiness and style.

Construction & Naval Architecture of Luxury Yacht CONSTELLATION
The yacht's wider design collaboration came from Oceanco. The professional naval architect plans are the creation of Oceanco. Motor Yacht CONSTELLATION received her elegant interior designing from the interior design company of The A Group. In 1999 she was formally launched to triumph in Alblasserdam and post sea trials and detailing was thereafter delivered to the owner who commissioned her. Oceanco Yachts (Alblasserdam Yachtbuilding) completed their new build motor yacht in the Netherlands. Her core hull was built out of steel. The motor yacht main superstructure is made extensively with aluminium. With a beam of 12.98 metres / 42.6 ft CONSTELLATION has beamy size. A reasonably deep draught of 4.21m (13.8ft) selects the list of certain marinas she can enter, depending on their minimum depth at low tide. She had refit improvement and alteration work undertaken in 2008.

M/Y CONSTELLATION Engineering & Speeds:
CONSTELLATION is powered by twin colossal MTU diesel engine(s) and can find a exciting maximum continuous speed of approximately 24 knots. The engine of the ship generates 8160 horse power (or CONSTELLATION kilowatts). Her total HP is 16320 HP and her total Kilowatts are 12009. Connected to her MTU engine(s) are twin screw propellers. With respect to the ship’s stabalisers she was built with Vosper. As for bow thruster maneuverability she utilises Schottel. CONSTELLATION has a/an fast cruise speed is 20 knots which makes a range of 3600.

Superyacht CONSTELLATION Has Accommodation:
Offering room for a limit of 19 visiting passengers sleeping aboard, the CONSTELLATION accommodates everyone comfortably. Normally the vessel utilises circa 22 capable crew to maintain and sail.

A List of the Specifications of the CONSTELLATION:
Superyacht Name: Motor Yacht CONSTELLATION Ex: (Project Stargate I) - Built By: Oceanco (Alblasserdam Yachtbuilding B.V.) - Built in: Alblasserdam, Dutch - Launched in: 1999 - Refitted in: 2008 - Length Overall: 80 metres / 262.5 feet - Waterline Length: 73.76 (242 ft)

Naval Architecture: Oceanco, Oceanco Naval Architecture - Designers Involved in Yacht Design: - Interior Designers: The A Group - Gross Tonnes: 1706 - Nett Tonnes: - Displacement: 1676 - Hull / Superstructure Construction Material: steel / aluminium - Owner of CONSTELLATION: - Cost To Build: - CONSTELLATION available for luxury yacht charters: - Is the yacht for sale: - Helicopter Landing Pad: No - Swimming Pool: - Jacuzzi Spa: - Material Used For Deck: teak

The Country the Yacht is Flagged in: Qatar - The official registry port is Nassau and her home port is Palma, Panama - Class society used: LR (Lloyds Register) - Completed survey under Maritime & Coastguard Agency (MCA) Large Yacht Code: - Max yacht charter guests 19 - Guest’s cabins: - Guests Cabin configuration: - Maximum Number of Guests Whilst Underway: - Number of Crew Members: 22

The main engines are two 8160 HP or CONSTELLATION Kilowatts MTU. Engine Model: 20V 1163 TB73L diesel. - Giving the combined power of 16320 HP /12009 KW. - Cruise Speed: 20 nautical miles per hour. - Top Speed: 24 knots. - Range in nautical Miles is 3600 at a speed of 18 knots. - Bunkering capacity: 450000 L. - Fresh water: 58830.00. - Generators: Mtu 3 times 300 kilowatts, 1 times 78 kilowatts. - Has been to: Napoli. Italy. Provincia di Napoli. Campania. - Stabaliser Stabality devices: Vosper. - Thrusters: Schottel. - A/C: Heinen & Hopman. - Yacht Beam: 12.98m/42.6ft. - Waterline Length (LWL): 73.76m/242ft. - Draught Maximum: 4.21m/13.8ft. Yacht Type: full displacement yacht.

Miscellaneous Yacht Details
In Sept 2009 CONSTELLATION sailed to Napoli, in Italy. CONSTELLATION has cruised the area including Provincia di Napoli during Sept 2009. Heinen & Hopman is the company that installed the air conditioning system on the yacht. Her deck material is predominantly a teak deck.
